Facom BEISSBARTH microtec 880 - Appendix; Mains Connection Chart

Mt 880/870/En/Rev. 002/05/98 * 901.882.002
BEISSBARTH MT 870 / MT 880
A-1
APPENDIX

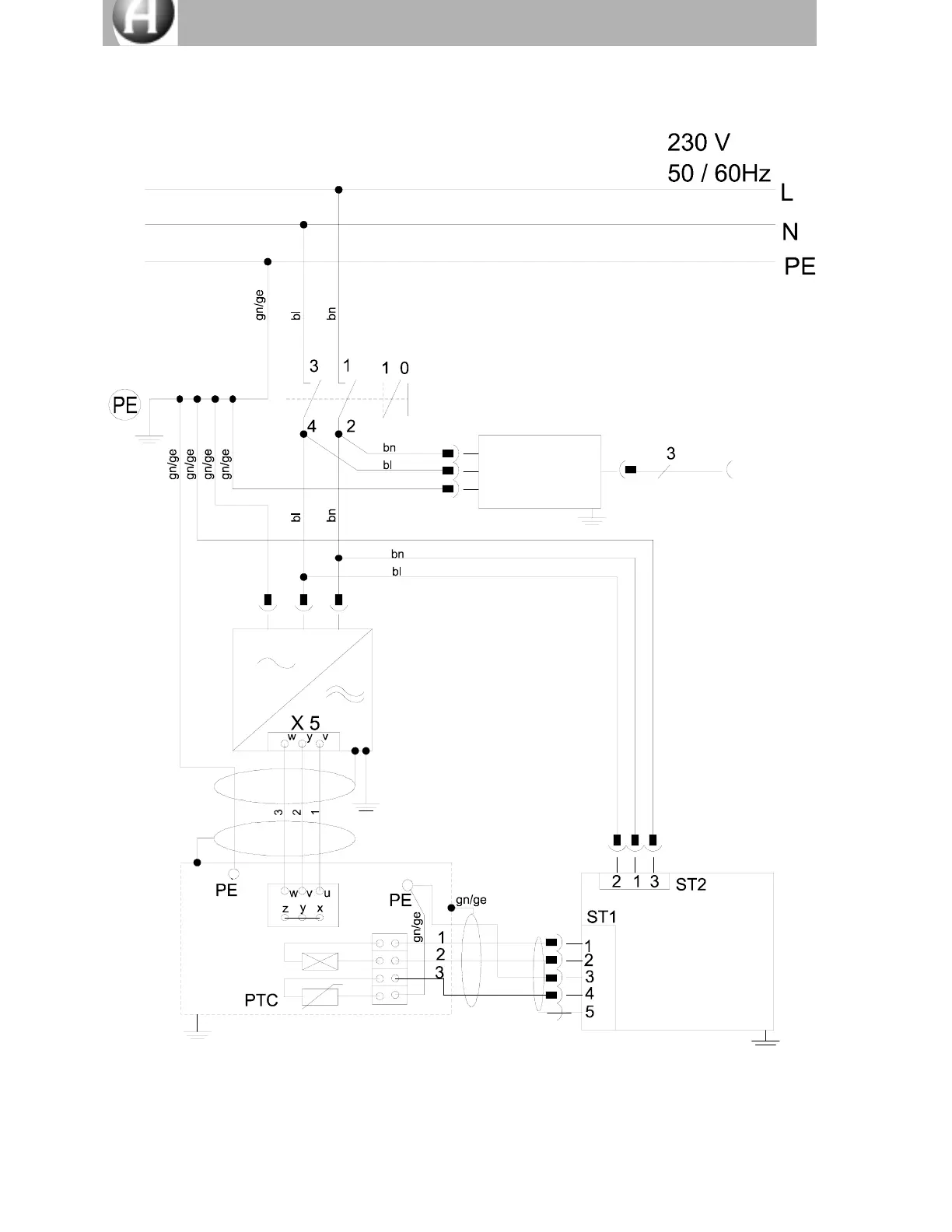

Mains connection chart for mt 880 / mt 870
PC power stage
Monitor
Frequency
converter
Main switch
Switch board
Motor terminal board
bl - blue
br - brown
gn - green
ge - yellow
