BEISSBARTH MT 870 / MT 880
2-2

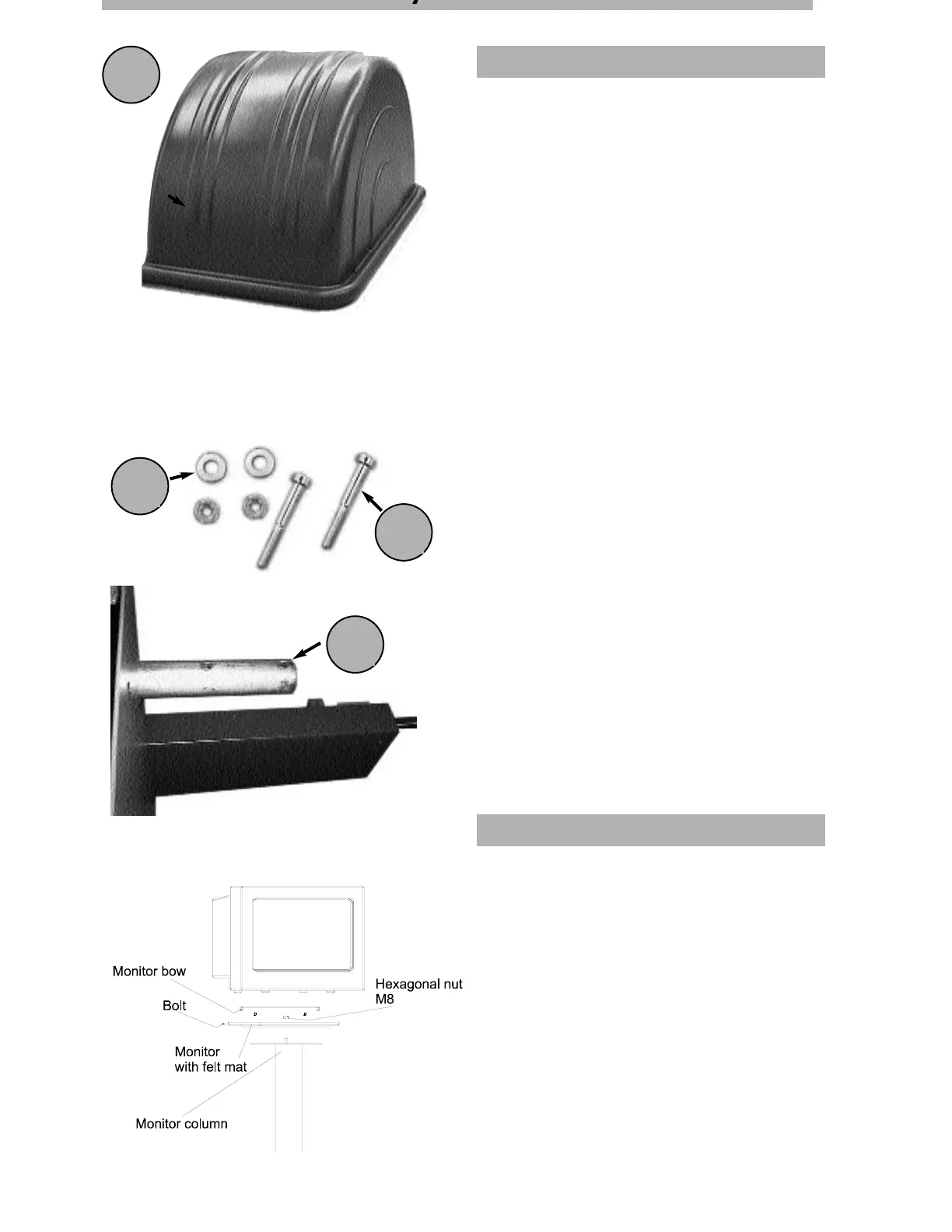

Assembling the monitor
Place the tube of the wheel guard on the stub
axle of the machine. Insert the two M 8 x 50
retaining screws, attach the washers and nuts
(Items 2 and 3) and tighten them.
Study the wiring diagram most carefully before
making electrical connections, since if these are
incorrect the electronics may be damaged
beyond repair. The balancing machine is intended
for supply from a 230V (50Hz) AC mains supply.
The wheel being balanced must rotate clockwise.
Before operating the machine for the first time,
the balancing flange must be calibrated
(see Page 9-2).
Assembling the wheel guard
sse b y o e ac e
1. Place the monitor tray on the monitor column
with the felt mat downwards, and secure with
the self-locking M8 hex nut. Do not tighten the
nut too far; the tray must turn without applying
undue force.
2. Take the monitor carefully out of the packing
material and check it for damage in transit.
3. Attach the monitor bracket to the monitor with
two self-tapping screws.
4.Place the monitor carefully in position on the
monitor tray and secure at the sides with two
self-tapping screws.
5. Make the electrical connections to the monitor.
A
C
D
B
