- Make sure the heads are mounted at the correct locations:
A sticker on each head shows the four wheels of a vehicle with one marked in red to indicate the
correct position on the vehicle of the head concerned.
Start the unit
Program version.
Display version during 10 seconds.

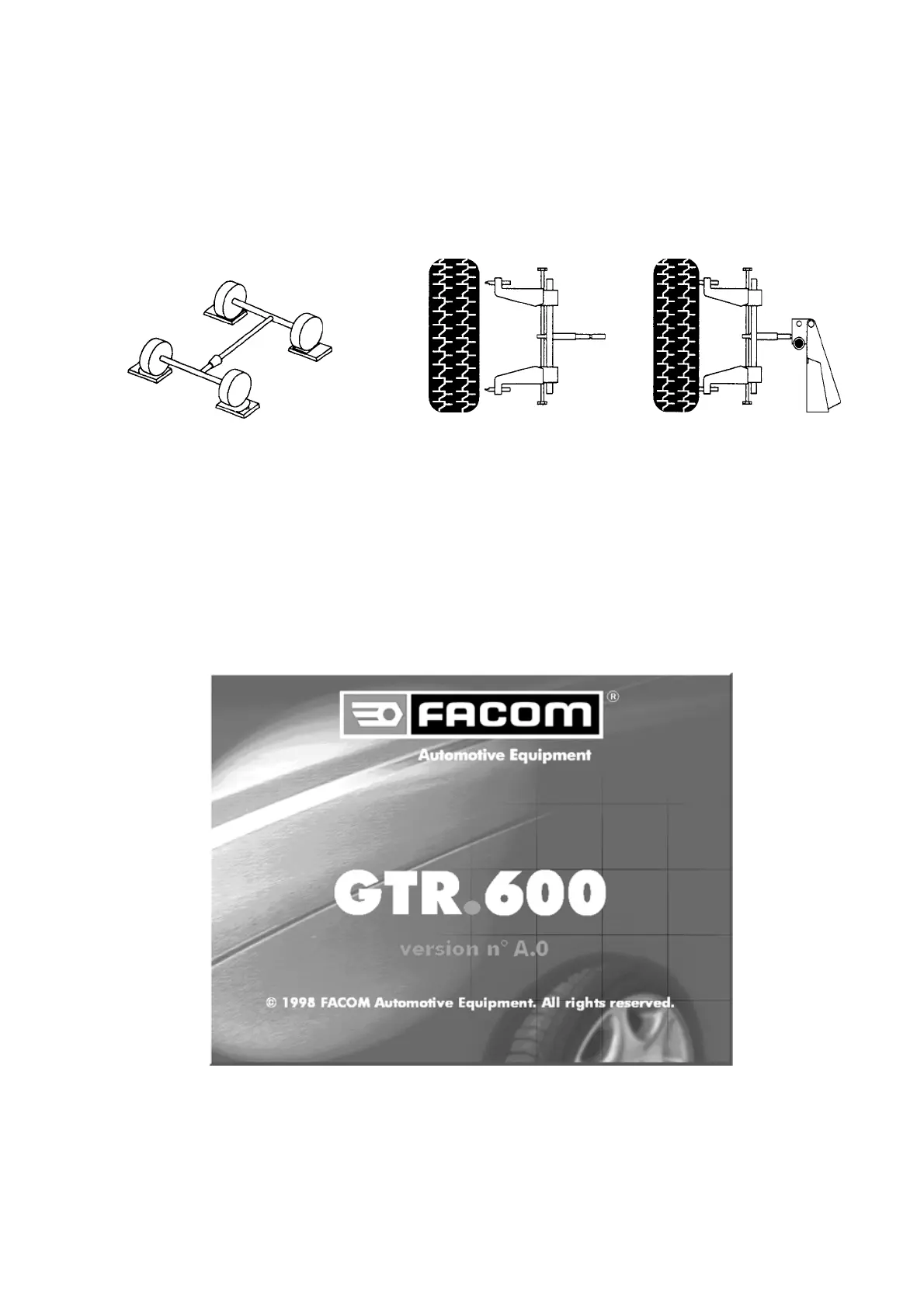

Equipment installation:
- Place the vehicle in position (wheels straight) on correctly installed (assembly pins) plates (UB.7A and
UB.8A).
- Install the head-carriers (UB.67) on the vehicle wheels and fit the safety grips (UB.12) (be sure to tighten
the mounting screws correctly).
- Place the heads in position on the head-carriers.
