27
Front wheel alignment
"F2" "
Wheel by wheel /axle
"
"F3" "
Rear adjustment
"
"F4" "
Locked steering wheel alignment
"
"F5" "
Alignment variation
"
"F6" "
Camber
"
"F7" "
Camber and castor
"
"F8" "
Read adjustment points
"
"F9" "
Return to inspection results
".
Confirm by pressing F2 “
Wheel by wheel adjustment
”

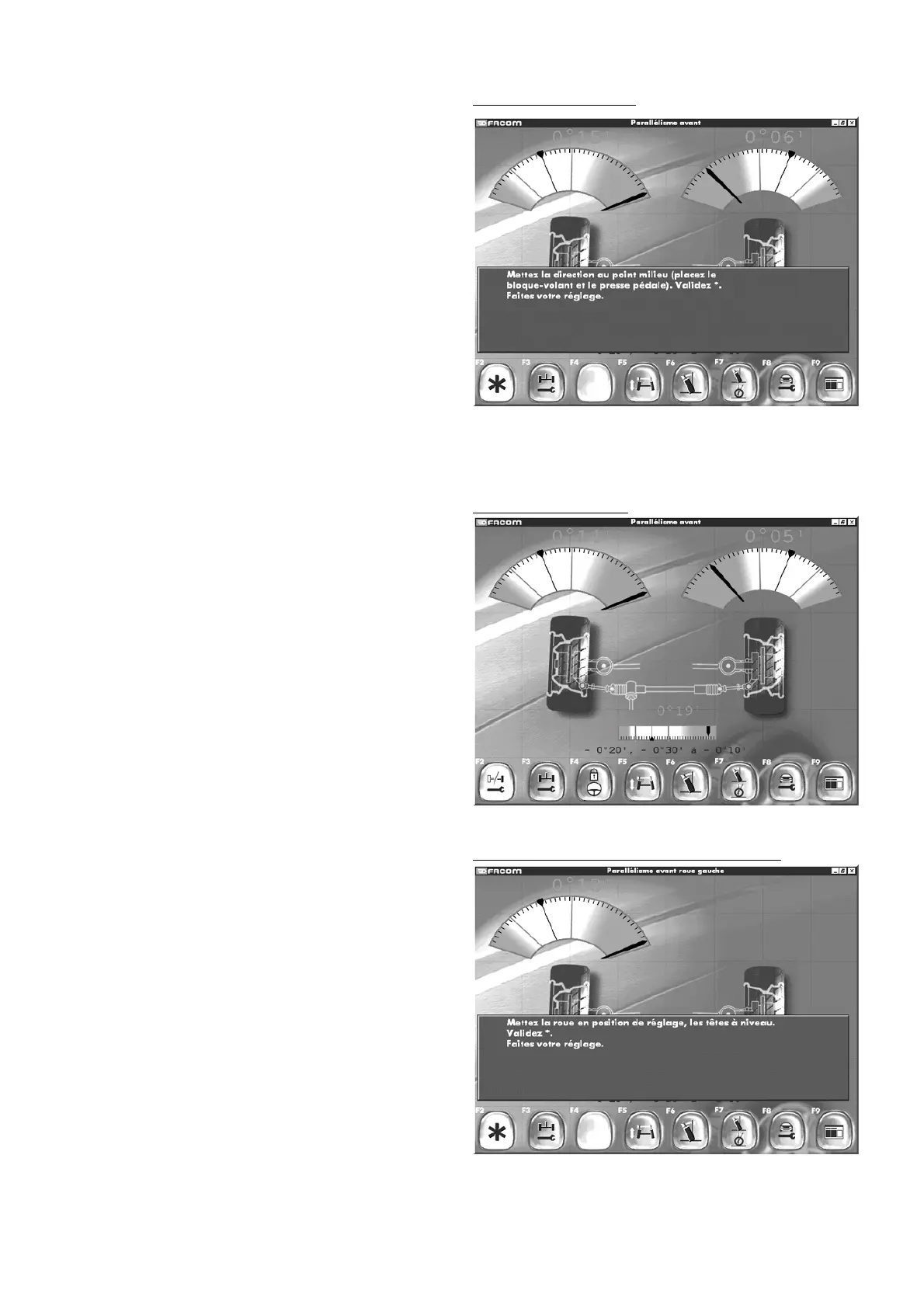

Front wheel alignment
Wheel alignment wheel by wheel (front left)
Zoom mode.
- Turn the wheel to the desired adjustment position.
- Validate and you will obtain the reading for wheel alignment.
- Carry out your adjustment procedure.
- Validate each stage.
- Confirm by pressing F2.
- You will then see the next screen.
Wheel alignment wheel by wheel (front left)
11.5 Front wheel alignment
- Follow the instructions on the screen.
- Validate each stage.
- Confirm by pressing F2.
- You will then see the next screen.
Front wheel alignment
