29
Front locked steering wheel alignment
"F3" "
Rear adjustment
"
"F4" "
Wheel alignment
"
"F5" "
Alignment variation
"
"F6" "
Camber
"
"F7" "
Camber and castor
"
"F8" "
Read adjustment points
"
"F9" "
Return to inspection results
".
- Confirm with F6: “
Camber
”
Front locked steering wheel alignment
Front alignment variation11.7 Wheel alignment variation
- Follow the instructions on the screen.
- Validate each stage.
- Confirm by pressing F5.
- You will then see the next screen.

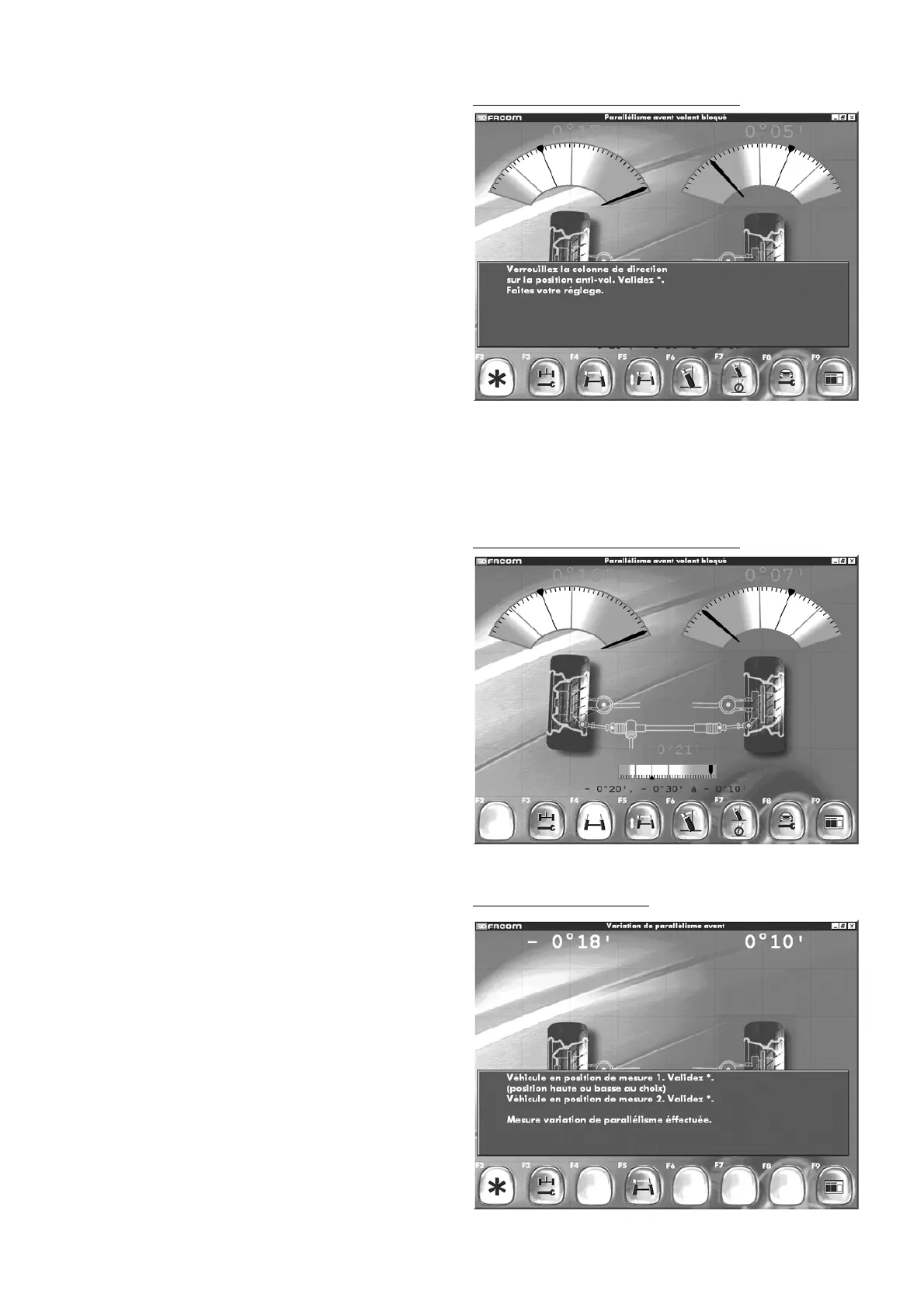

Front locked steering wheel alignment11.6 Front wheel alignment - steering
wheel locked
This is another adjustment approach.
With the steering wheel mechanically locked in position (with
the ignition key removed) after validation of the option you will
obtain a read-out of the wheel alignment, with the equipment
carrying out compensation itself.
- Follow the instructions on the screen.
- Validate each stage.
- Confirm by pressing F2.
You will then see the next screen.
