Remote modules. RIO5, RIOW and RIOR series.
CNCelite
8058 8060
8065 8070
RIOR-E-48I32O / RIOR-E-48I32O-ANALOG (ETHERCAT).

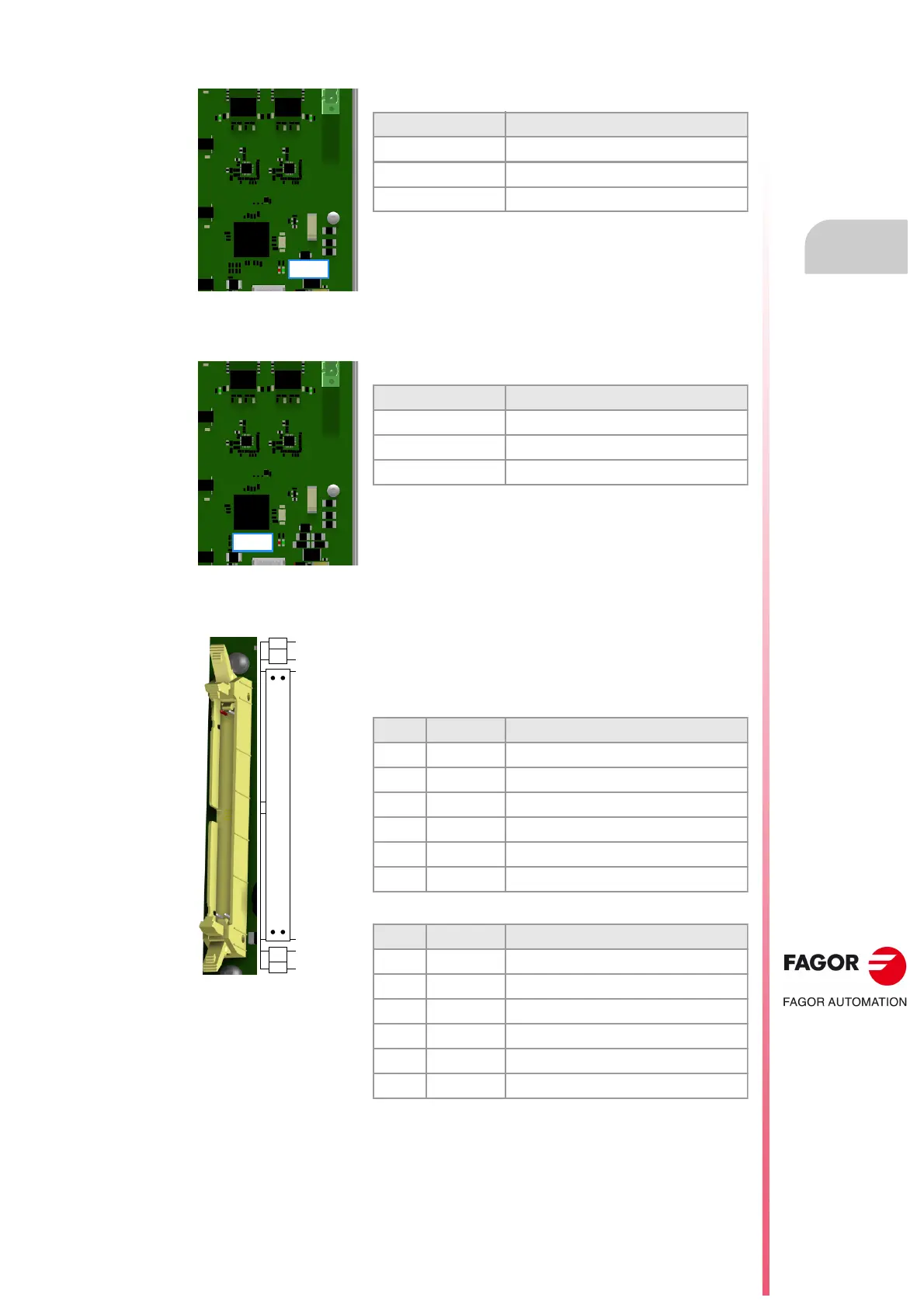

Hardware functionality. Connectors.
ꞏ111ꞏ
REF. 2107
ꞏRNꞏ RUN led, bus status indicator.
ꞏERꞏ ERR led, bus status indicator.
ꞏI44Aꞏ/ꞏI44Bꞏ Digital inputs and outputs.
See "6.7.3 Connection of the digital inputs and outputs." on page 117.
Green LED.
Blinking rate. Description.
Off. Module in INIT status or not operational.
Flash. Module in SAFE-OPERATIONAL state.
On. Module in OPERATIONAL state.
RN
Red LED.
Blinking rate. Description.
Off. No errors.
Intermittent. Communication or configuration error
On. No communication.
ER
50-pin male IDC connector with a latch. Use a female
connector for ribbon cable. Maximum height of the connector,
14.5 mm.
• Connector ꞏI44Aꞏ.
• Connector ꞏI44Bꞏ.
Pin. Signal. Description.
1 GND 0 V reference signal.
2 24V_OUT 24 V output for digital inputs.
3ꞏꞏꞏ26 I1 - I24 Digital inputs.
27ꞏꞏꞏ30 - - -
31ꞏꞏꞏ46 O1 - O16 Digital outputs.
47ꞏꞏꞏ50 24V 24 V supply for digital outputs.
Pin. Signal. Description.
1 GND 0 V reference signal.
2 24V_OUT 24 V output for digital inputs.
3ꞏꞏꞏ26 I25 - I48 Digital inputs.
27ꞏꞏꞏ30 - - -
31ꞏꞏꞏ46 O17 - O32 Digital outputs.
47ꞏꞏꞏ50 24V 24 V supply for digital outputs.
2 1
50 pins
