Remote modules. RIO5, RIOW and RIOR series.
CNCelite
8058 8060
8065 8070
RIOR-E-48I32O / RIOR-E-48I32O-ANALOG (ETHERCAT).
Hardware functionality. Connectors.
ꞏ112ꞏ
REF. 2107
ꞏI48ꞏ Analog inputs and outputs. Analog inputs for temperature sensors.
Connector data.
Number of poles. 2x8.
Pitch. 3.5 mm.
Connection technique. Spring connection.
Minimum/maximum section. 0.2 / 1.5 mm².
Rated current In. 8 A.
Cable data.
Length to be stripped. 7 mm.
See "6.7.4 Connection of the analog inputs/outputs and the PT100
inputs." on page 118.

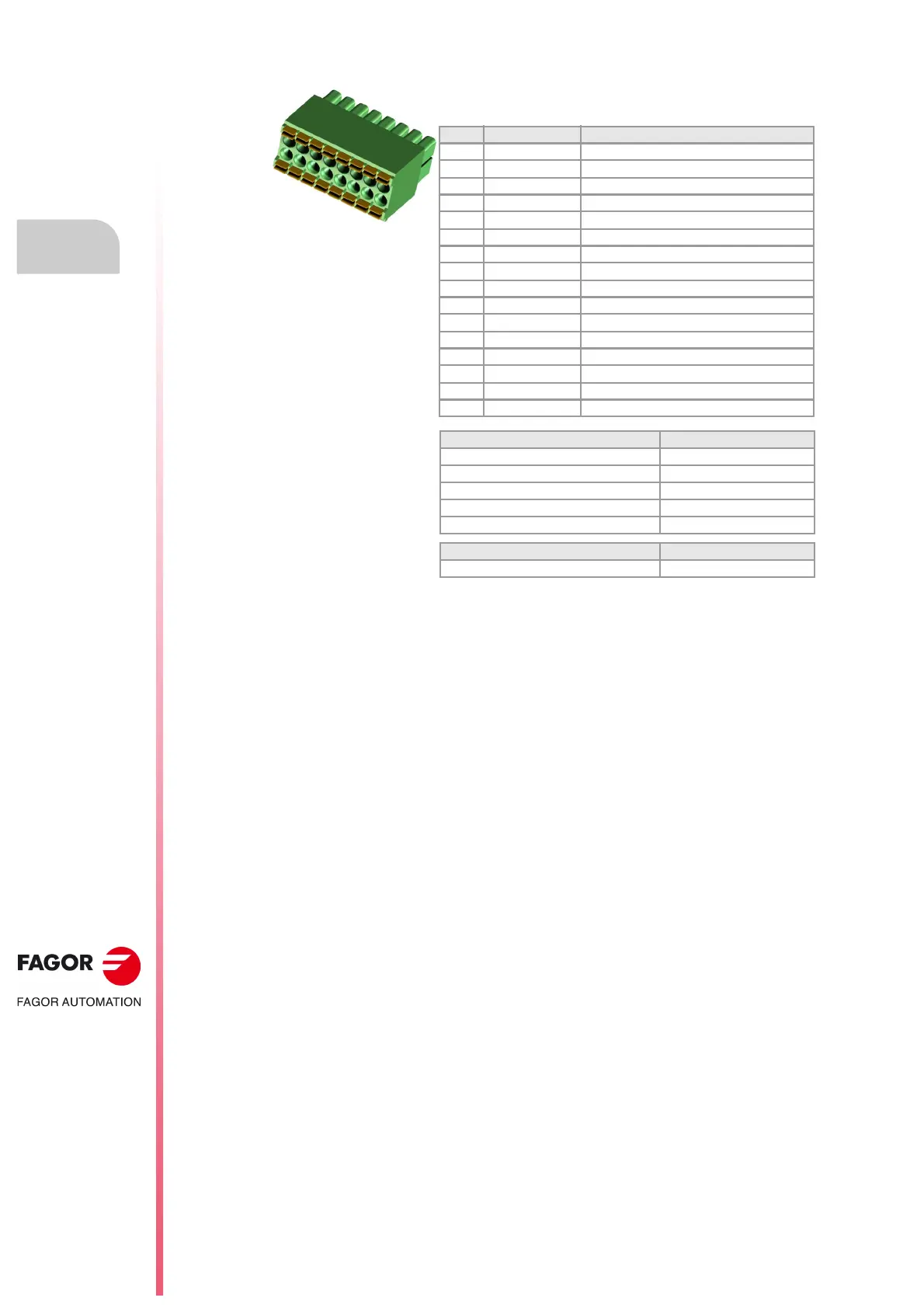

Plug-in part 8x2 pin two-level male Phoenix Contact minicombicon (3.5
mm pitch). Rated current; 8 A.
Pin. Signal. Function.
1 GND_AO1 Reference signal. Analog output 1.
2 GND_AO2 Reference signal. Analog output 2.
3 AO1+ Analog output 1.
4 AO2+ Analog output 2.
5 GND_AO3 Reference signal. Analog output 3.
6 GND_AO4 Reference signal. Analog output 4.
7 AO3+ Analog output 3.
8 AO4+ Analog output 4.
9 GND_AI1 Reference signal. Analog input 1.
10 GND_AI2 Reference signal. Analog input 2.
11 AI1+ Analog input 1.
12 AI2+ Analog input 2.
13 GND_PT100_1 Reference signal. Input PT100 1.
14 GND_PT100_2 Reference signal. Input PT100 2.
15 PT100_1+ Input PT100 1.
16 PT100_2+ Input PT100 2.
1
15
2
16
