Hardware
MP-70/50 • MP-72/52 • MP-73/53 • PN 98-0002-29 • REV 1709.13 9
HARDWARE

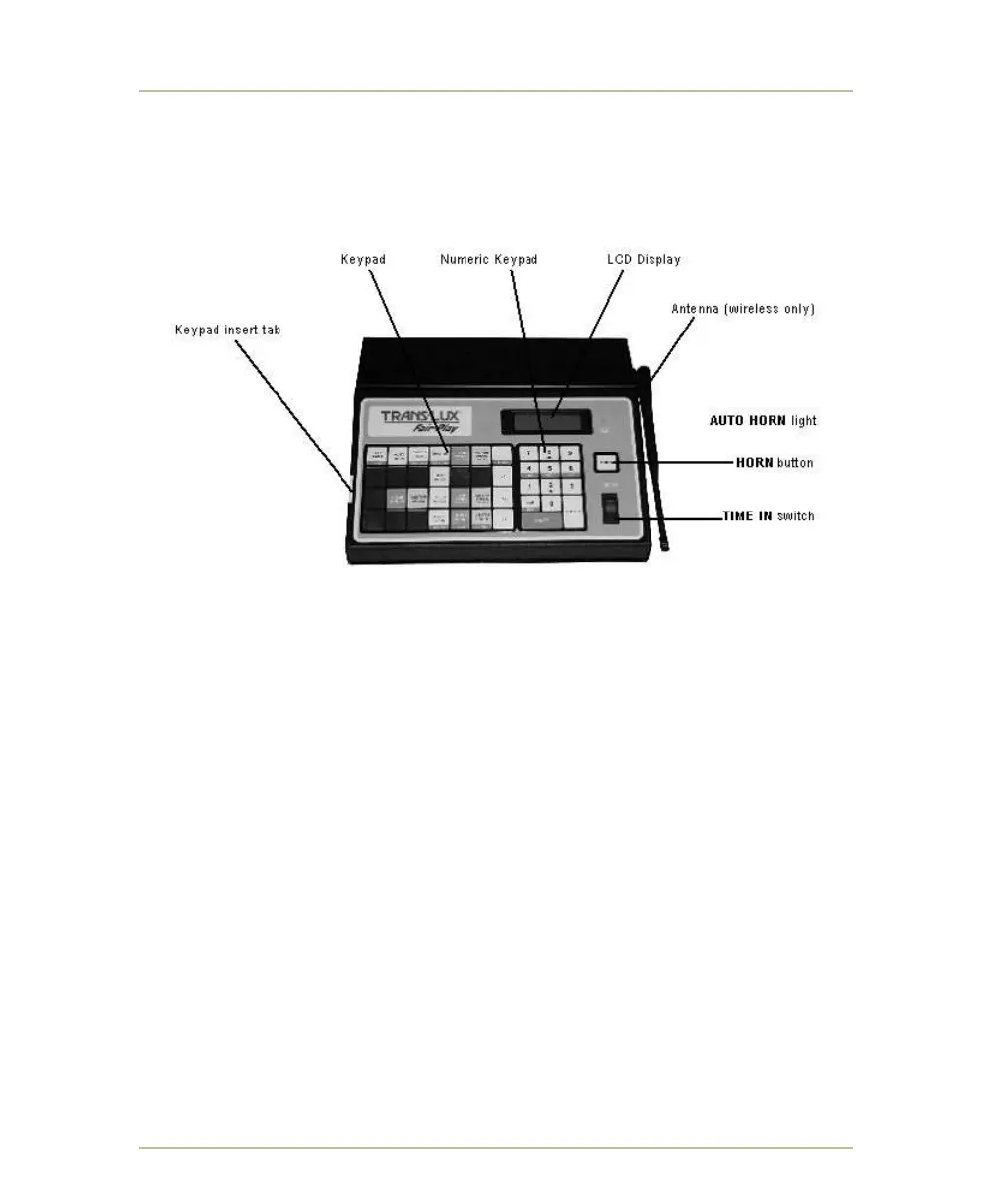

The figure below acquaints you with the control’s major components.
(Wireless control is shown).
Connect scoreboards, hand switches, and other devices to the MP-70/50
controller as shown on the following pages.
SETTING UP THE MP-70/50
It is vitally important to correctly connect the scoreboard, hand switch or other
devices to the MP-70/50. Improperly connected equipment will not work as
expected.
If you are using a controller equipped with the wireless option, refer to MP-72/52
G2 WIRELESS OPTION on page 102.
