DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 104
.

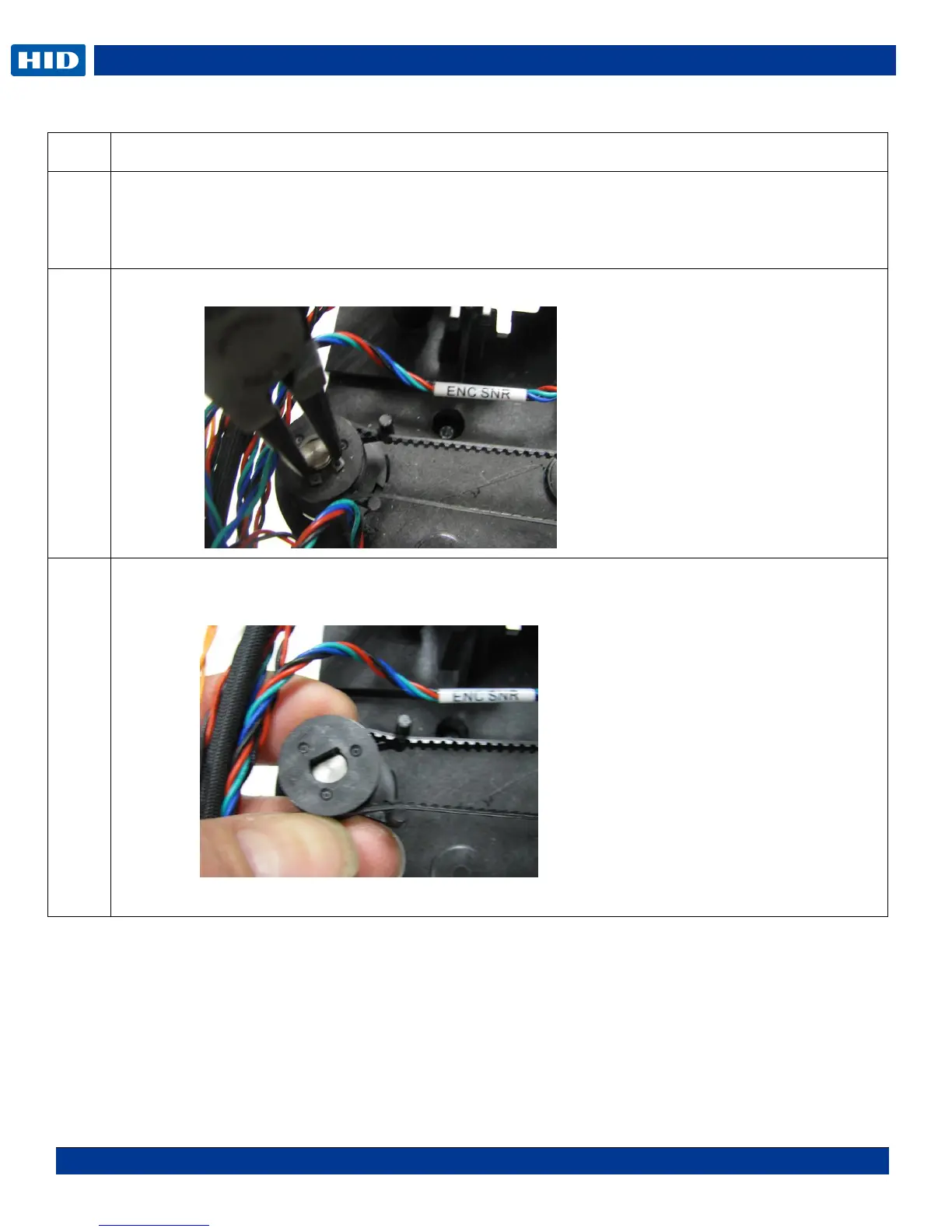

Replacing the Rollers (continued)
D-1
To replace D920015, Input Feed Roller.
Remove the Rewind Motor to access the roller.
Remove/Replace the Rewind Motor Assembly
D-2
Remove the retaining ring (140048)
D-3
Remove the pulley. ( D850190) Pull up with the belt attached.
Remove the Belt Tensioner (D920168)
TIP: When replacing the roller also replace the pulley (D850190) for best results.
