DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 74
.

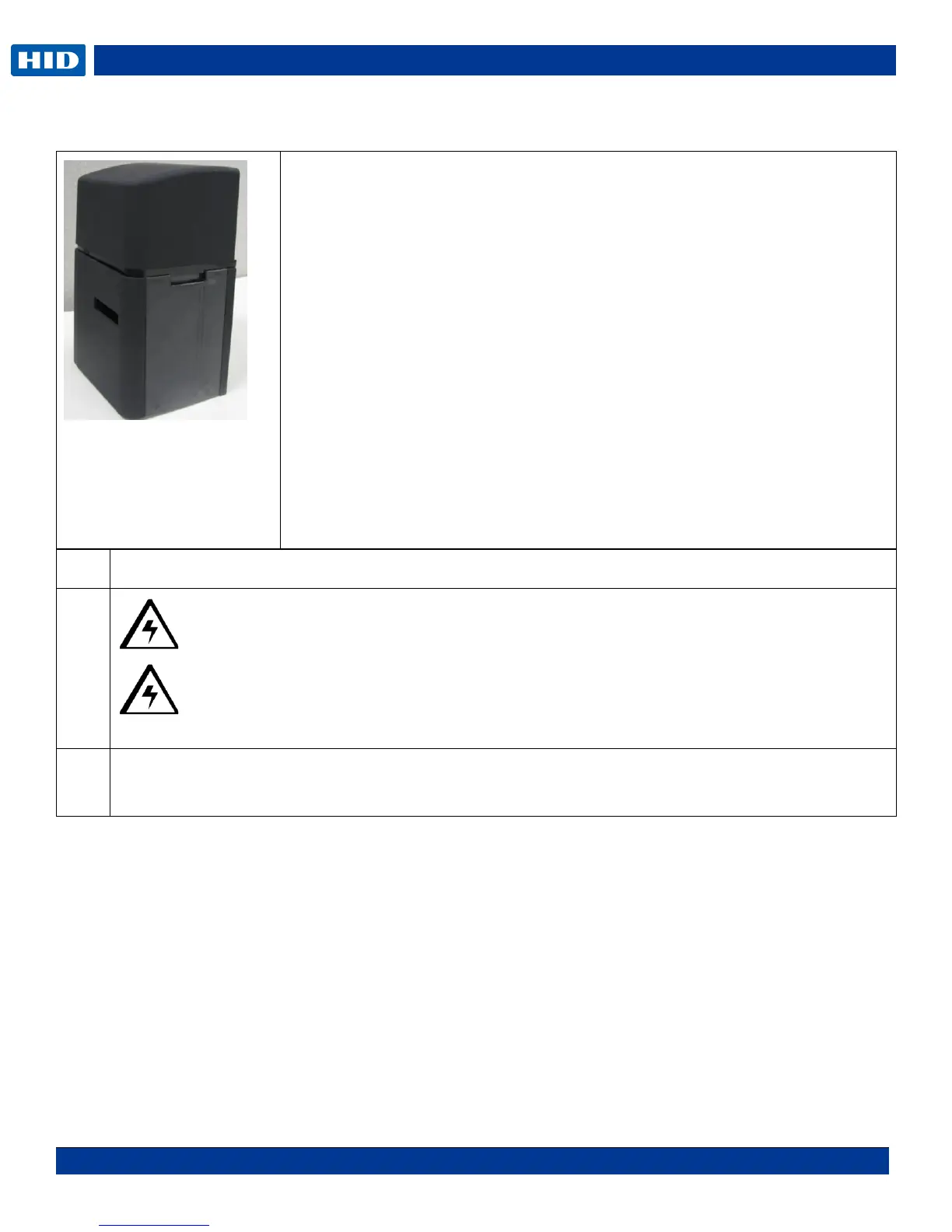

Remove/Replace the Flipper Cover
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
Caution: Please be careful not to force any of the snapping parts as they could break with
too much pressure. When replacing the Covers or any parts, do NOT pinch any wires.
2
Remove the Top Cover of the printer.
Remove the Dual-Sided Printing Module from the printer.
Short Dual-Sided Printing
Module shown
D930010-06
Tools needed: T10 Torx screwdriver
Estimated Repair Time: 15 min
Preparation: Remove the top cover of the Printer and Dual-Sided Printing
Module from the Printer
Important: This procedure can only be performed by authorized service
personnel.
Short & Tall use common parts
Top cover D930192-01 DTC4250e/4500e
Top Cover D930192-03 DTC1250e
Card Bin D930193-01 DTC4250e/4500e
Card Bin D930193-03 DTC1250e
Flipper Door D930194-01
The Tall Dual-Sided Printing Module uses the Lamination Cover
