DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
.

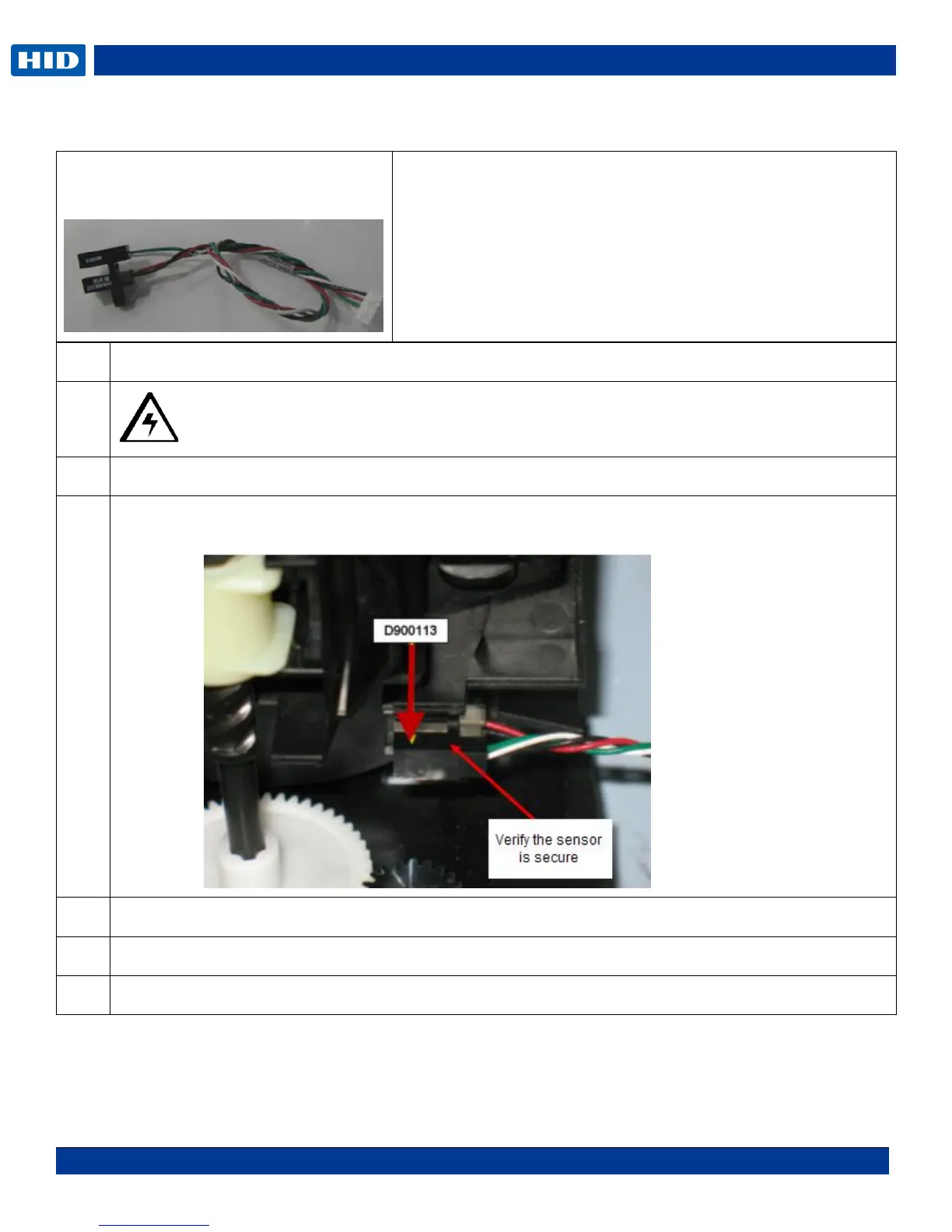

Remove/Replace the Headlift Sensor/Cable- D900113
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
Remove the Flipper Covers.
Pull the Headlift Sensor OUT towards the stepper motor gear to release from the frame. Sensor does
not come out with breaking the sensor or tab.
Replace sensor by snapping IN the slot provided.
Tools needed: T10 Torx screwdriver
Estimated Repair Time: 20 min
Preparation: Remove the Covers
Important: This procedure can only be performed by
authorized service personnel.
