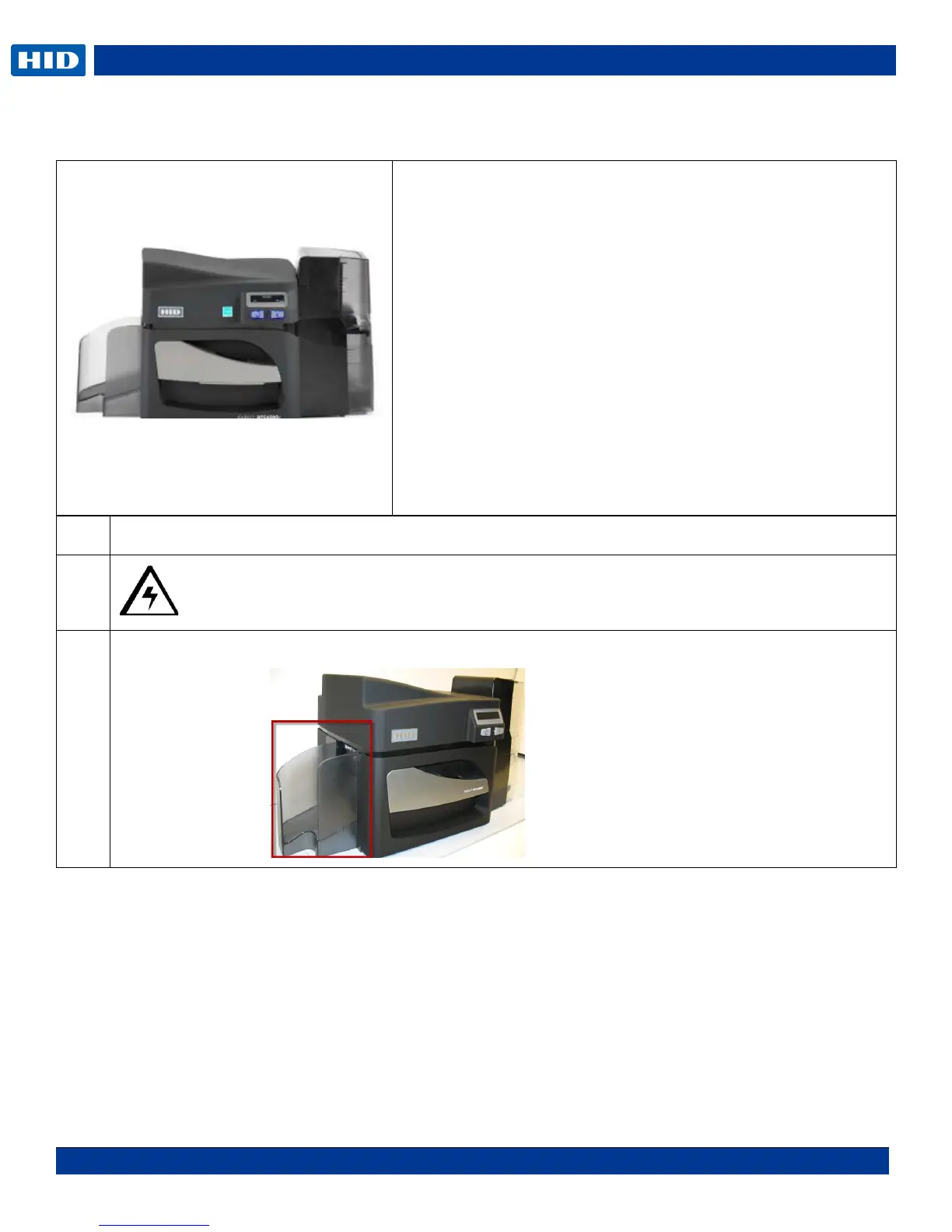

DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 20
.
DTC4500e Single Side Printer Cover Removal
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
2
Remove the card output hopper. Squeeze in from the top to unlatch the tabs.
DTC4500e
Tools needed: T10 Torx screwdriver
Estimated Repair Time: 15 minutes
Preparation:
Important: This procedure can only be performed by
authorized service personnel.
Top Cover D930181-01
Display Cover/PCB/cable MDP-00093
Output Cover D930281-01
Output Bin D930033
Dual Input Hopper D930039
Front Cartridge/Handle Cover MDP-00102
