DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 50
.

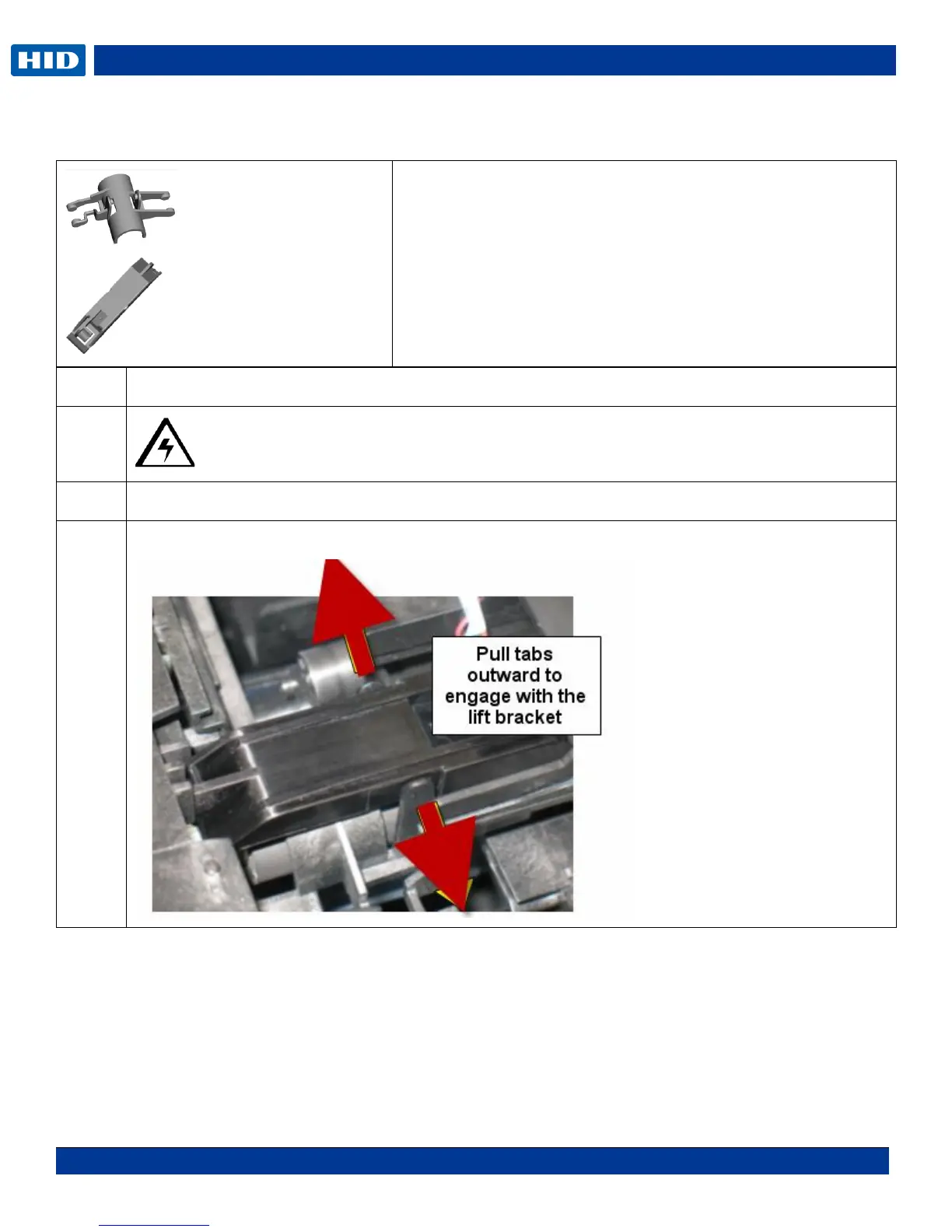

Remove/Replace the Lift Pinch Roller Assembly (D930137) Pinch Lift Bracket (D930136)
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
2
Remove the mainboard (D930500)
3
Pull the tabs apart on the Bracket (D930136) to release. Lift up and out.
D930137
D930136
Tools needed: T10 Torx screwdriver
Estimated Repair Time: 20 Min
Preparation: . Remove the Covers
Important: This procedure can only be performed by
authorized service personnel.
