DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 124
Appendix B

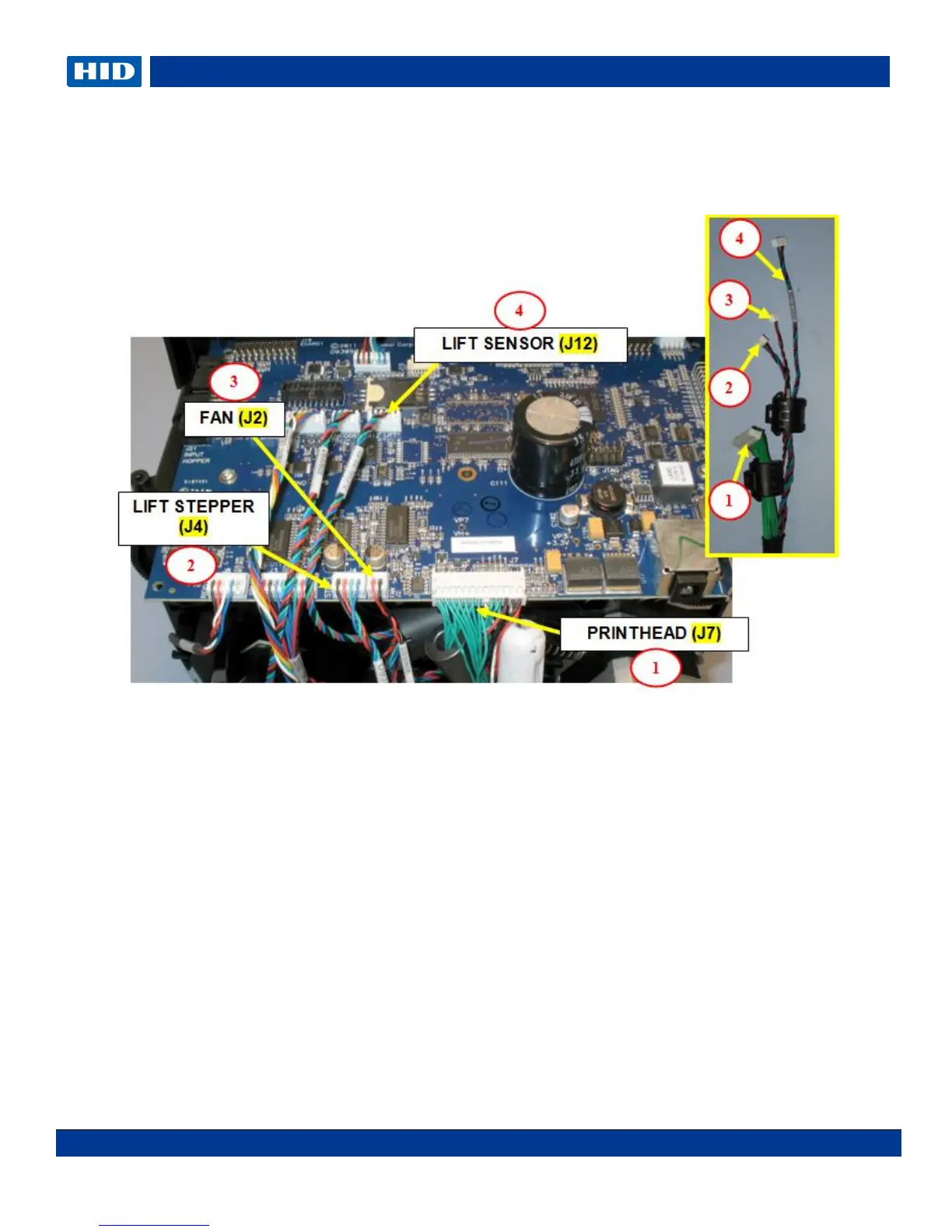

Printer Mainboard connections
J2-J4-J7-J12 Printhead Harness Cable (D930616) Printhead, Lift Stepper & Sensor, Fan
