DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 8
.

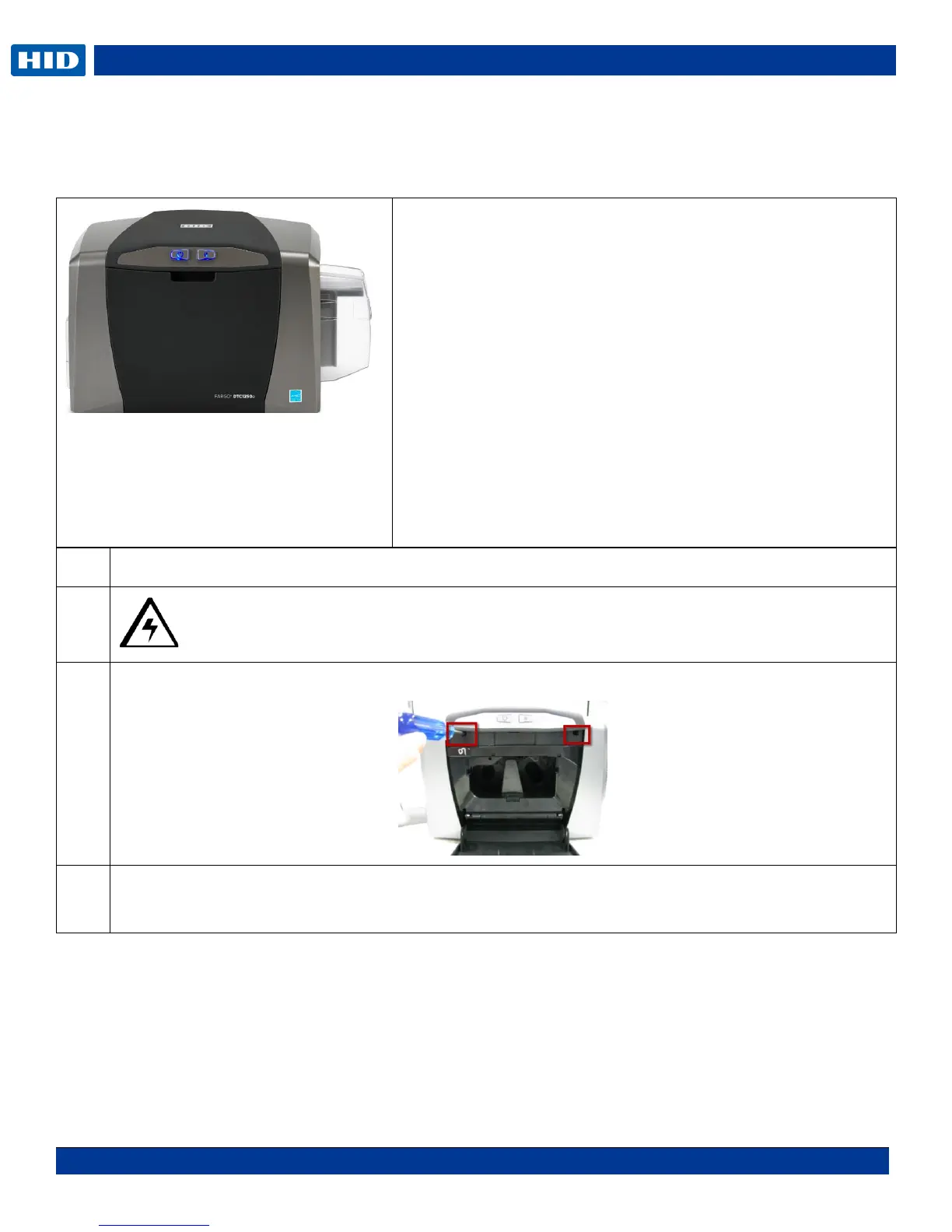

Cover Removal Procedures
Remove/Replace Printer Covers DTC 1000Me- 1250e Single Side
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
2
Open the front door. Locate and remove the 2 screws. (F000178)
3
Lift up the top cover and disconnect the display cable (D930607) from the mainboard.
Remove the top cover by flexing the center to disengage the insert tabs.
DTC1250e single side shown
Tools needed: T10 Torx screwdriver
Estimated Repair Time: 15 minutes
Preparation:
Important: This procedure can only be performed by
authorized service personnel.
DTC1250e DTC1000Me
Top Cover/PCB Assy D930034-02 D930034-02
Front Door D930265-05 D930265-04
Left Cover D930263-03 D930263-02
Right Cover D930264-03 D930264-02
Output Bin D930269-01 D930269-01
