DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
.

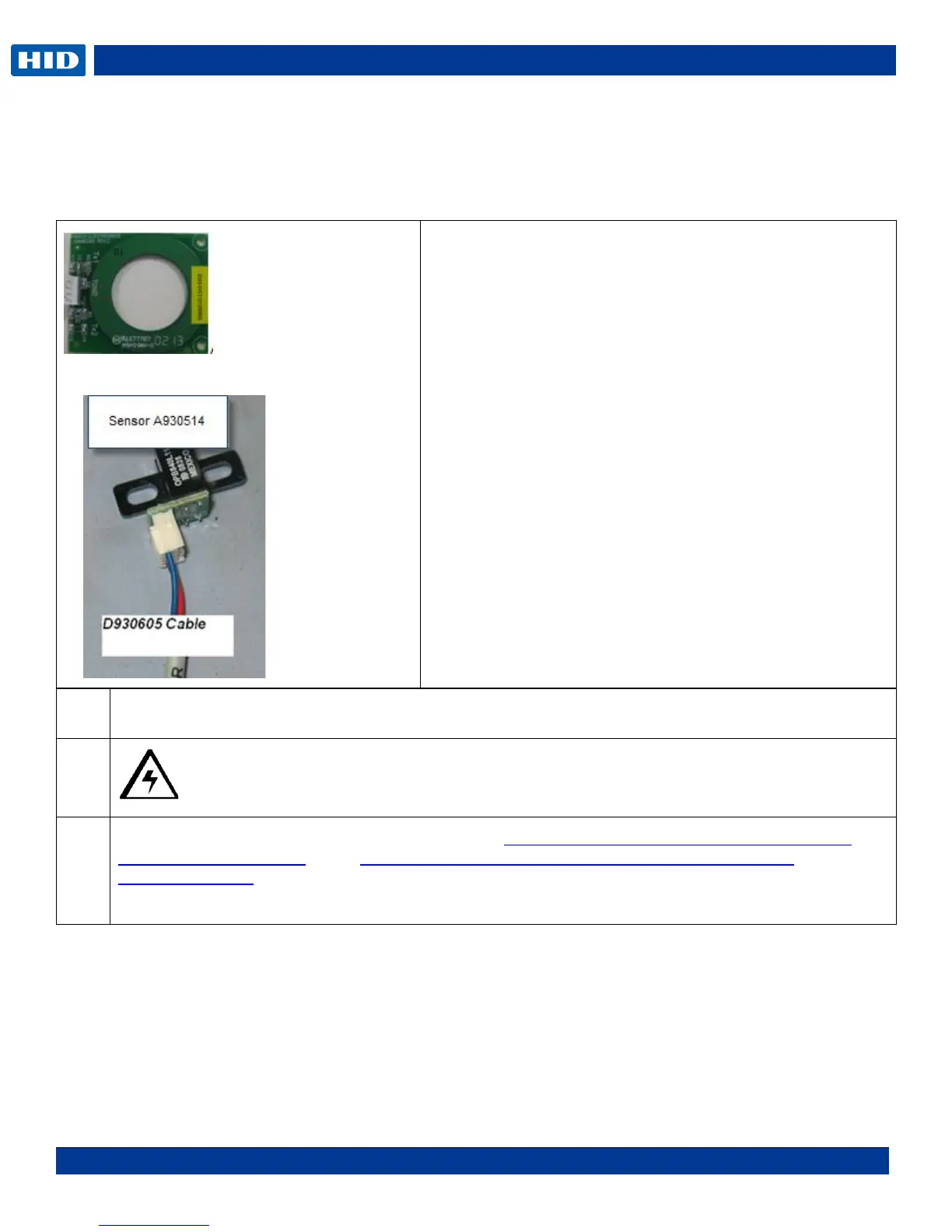

Remove/Replace Encoder Sensor (A930514) for RFID Supply Spindle
NOTE: For any other parts (motor/ encoder wheel) REPLACE COMPLETE ASSEMBLY (D930015).
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
Remove Supply Spindle-RFID assembly. Refer to: Remove/Replace Supply Spindle RFID Motor
(D930015) DTC4500e OR Remove/Replace Supply Spindle RFID Motor (D930015)
DTC1250e/4250e
Tools needed: Torx screwdriver and flat head screwdriver
Estimated Repair Time: 30 min
Preparation: Remove the Covers
Important: This procedure can only be performed by
authorized service personnel.
RFID Cable D930603
Encoder Sensor Cable D930605
To Next Page
