DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
.
Remove/Replace Supply Spindle RFID Motor
Caution: Turn OFF the Printer and unplug the power cord from the Printer.

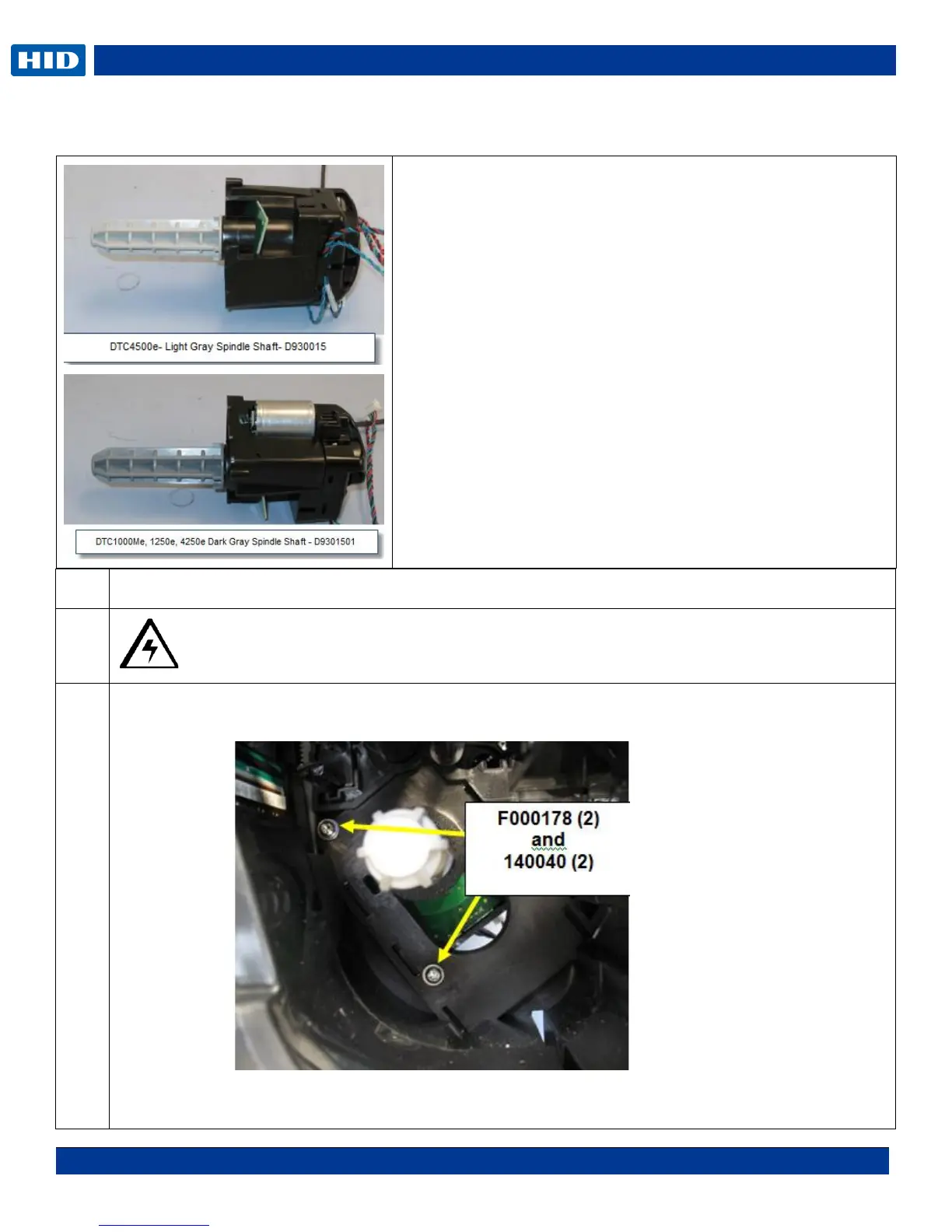

Remove the screw F000178 & washer 140040 from the motor assembly. This is done from the front
of the printer.
NOTE: DTC1250e/4250e will have 2 screws holding the Supply. DTC4500e has only one screw
holding the supply.
Tools needed: T10 Torx screwdriver
Estimated Repair Time: 20 min
Preparation: Remove the Covers
Important: This procedure can only be performed by
authorized service personnel.
