DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 57
.

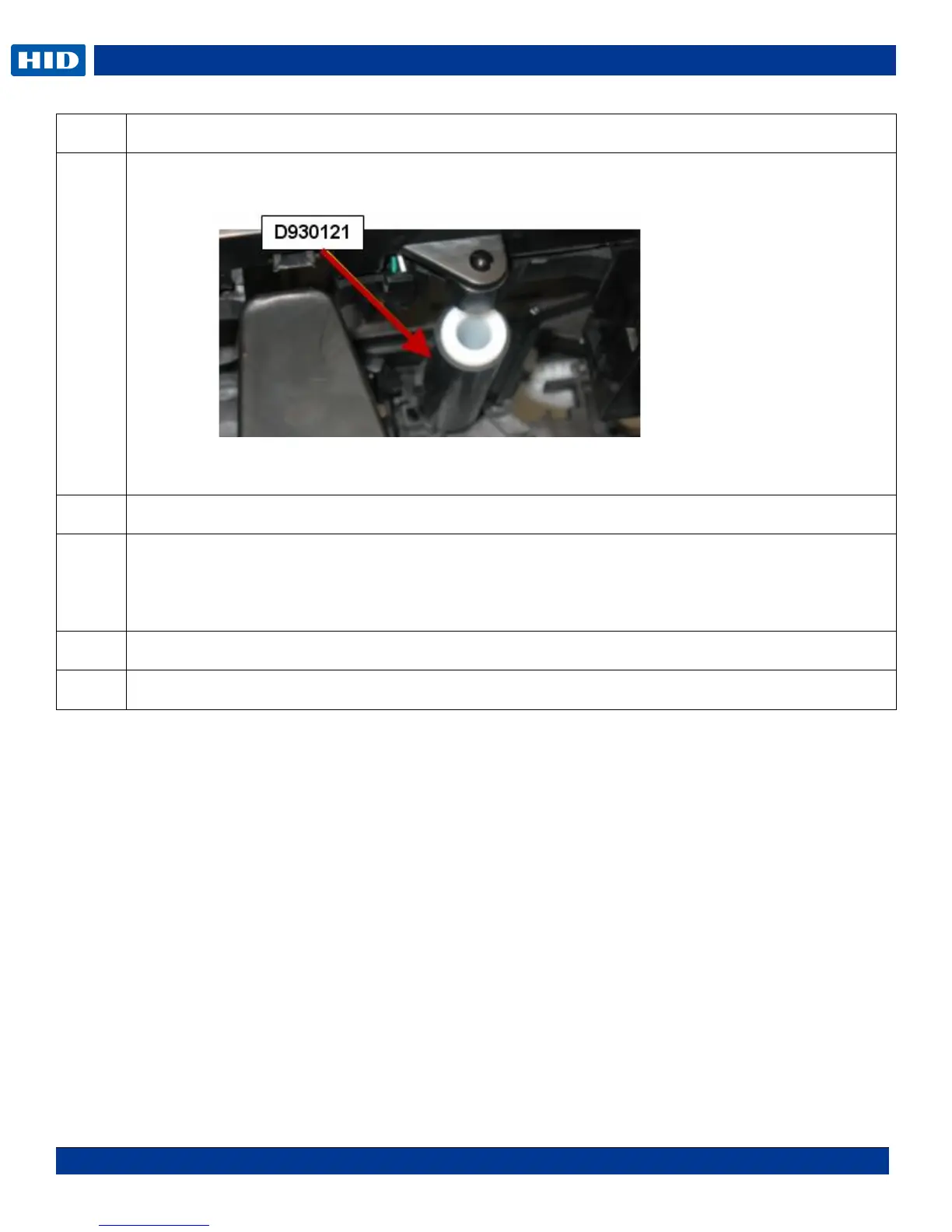

Step
Procedure
11
From the front of the printer release the cleaning roller from the peg by pushing all the way back
and dropping the roller.
NOTE: Do not hold the roller by the rubber but only from the plastic shaft. The rubber can move
out of position on the shaft and cause a print quality issue.
12
Replace with new roller.
13
Insert the Spring into the upper and lower pegs.
Install the Lever then the Gear.
Turn the black platen gear to verify the gears turn simultaneously.
14
Reinstall cam, locking bushing, stepper motor, ribbon supply assembly.
15
Procedure is complete.
