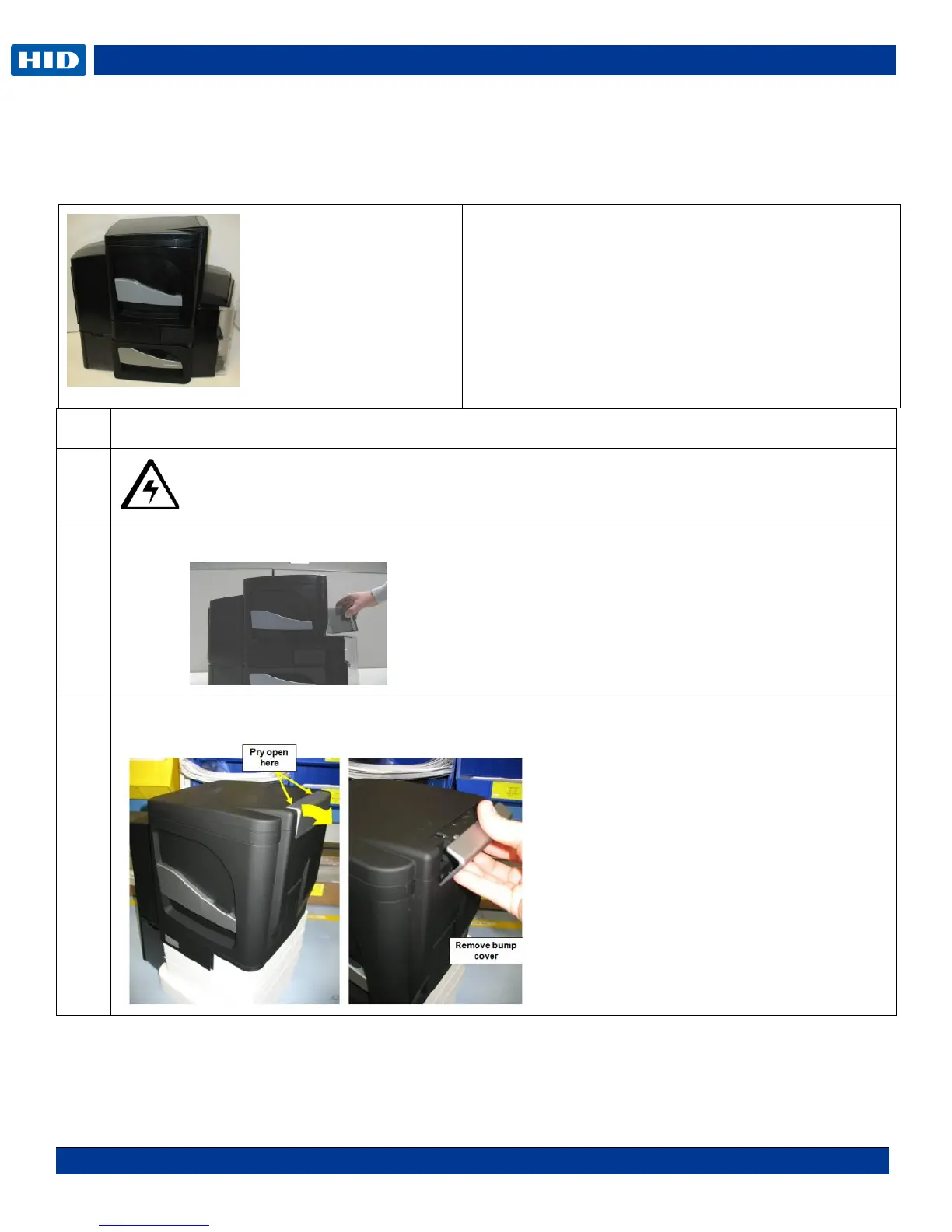

DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
.
DTC4500e Lamination Module Cover Removal
NOTE: Remove the Lamination Module prior to removing the printer covers if repairing the PRINTER. The
Lamination Module does not need to be removed in order to repair the Lamination Module (unless replacing
the Lamination Mainboard).
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
Remove the card output bin (D930296-01)
Remove the Input Bump Cover (D930292-02)
Tools needed: T10 Torx screwdriver
Estimated Repair Time: 15 minutes
Preparation:
Important: This procedure can only be performed by
authorized service personnel.
