DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 90
.

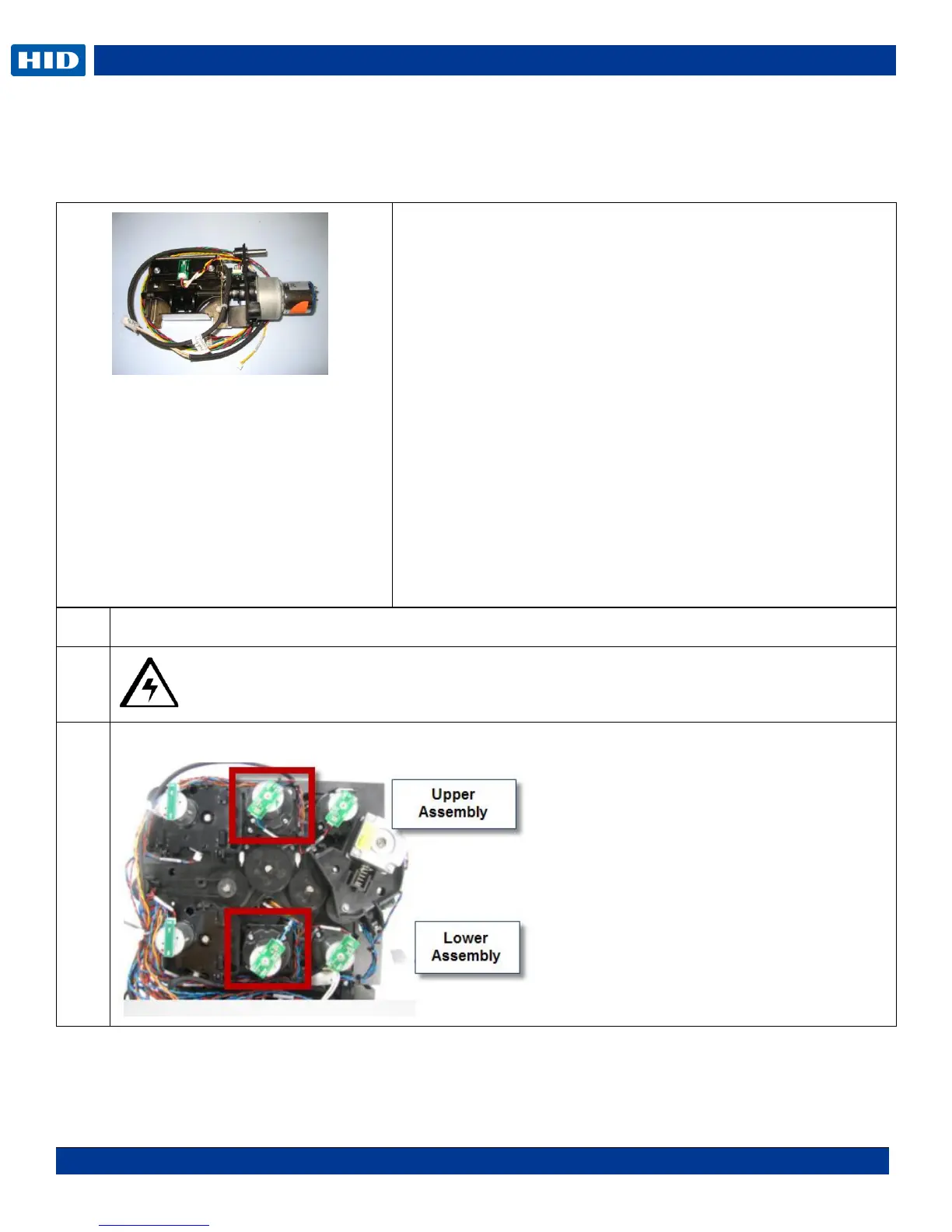

Remove/Replace the Lamination Head Assembly
Upper Assembly (D920022) & Lower Assembly (D920023)
Step
Procedure
1
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
2
Both the Upper and Lower Lamination Assemblies follow the same procedure.
This part is sold as one assembly which
includes :
Platen Roller (D920012-Upper),
Lamination Roller (D920020- Lower),
Film LED (A000454)
Head Lift Sensor (A000126)
Thermocouple RTD/cable (D920151)
Motor (D900484-05) and the wires.
Tools needed: T10 Torx screwdriver
Estimated Repair Time: 35 min
Preparation: Remove the Lamination Module Covers.
Remove the mainboard to access the wire removal procedure.
Important: This procedure can only be performed by
authorized service personnel.
