DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 66
.

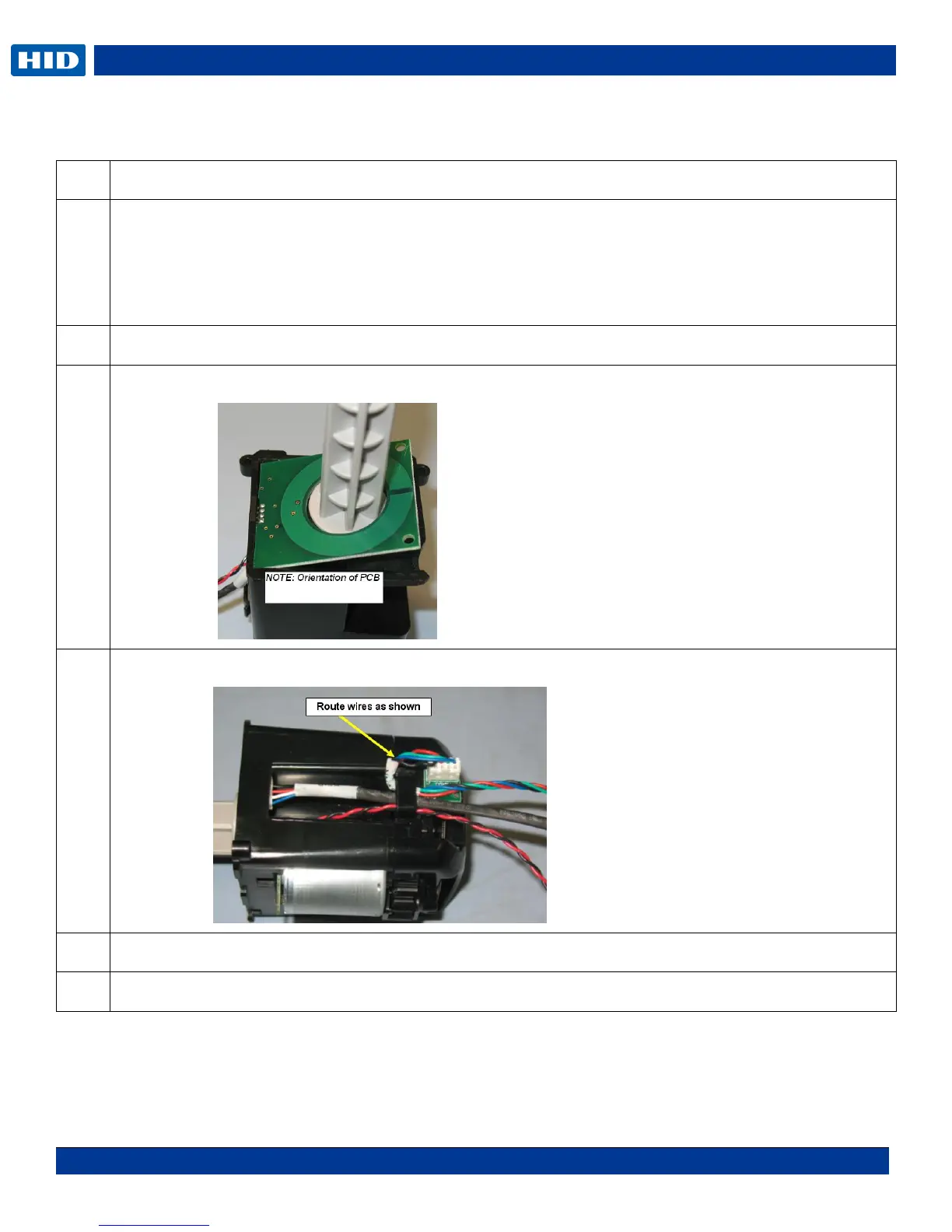

Remove/Replace the PCB board (A000365-01)
Step
Procedure
1
Remove Supply Spindle-RFID assembly. See procedure above (D930015).
Un-snap the PCB from the frame.
The PCB with the HOLES is set under the corner tabs.
Lift up this end first. See picture below.
2
Replace with new PCB and/ or Cable.
3
Insert one end first then snap into the corner tabs. Replace cable to J9.
4
For both procedures route the cables under the holding tab.
5
Reverse assembly to reinstall parts
6
Procedure is complete.
