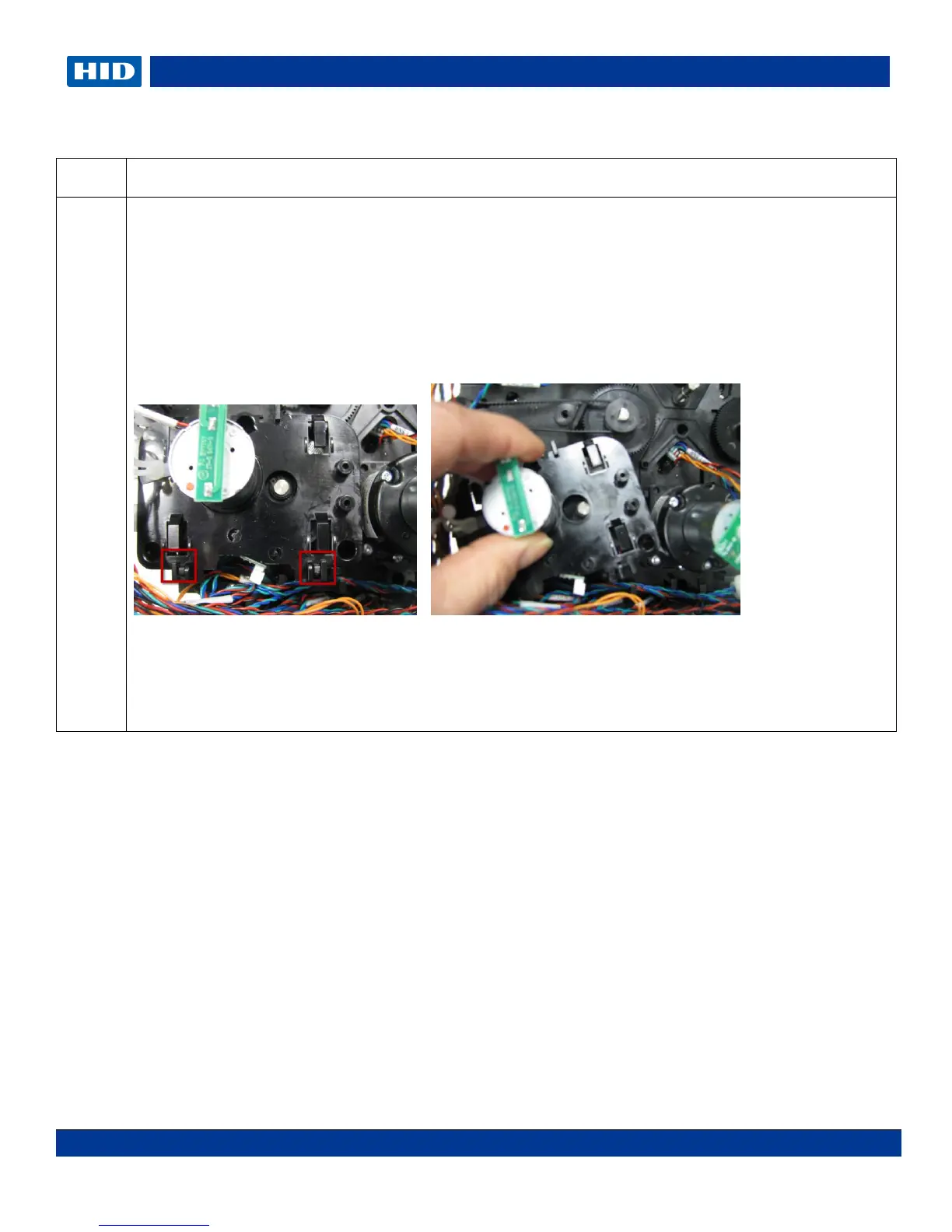

The Rewind Mount assembly (D900406) is attached at the bottom then snapped at the top.
Unsnap the top of the assembly then pivot the assembly to the LEFT to release the encoder sensor
from the encoder wheel. This releases the assembly from the frame.
TIP: When reassembling use your finger to guide the encoder sensor (from underneath) to the
proper position. Slide in from the left at an angle then turn to match the snap tabs.
CAUTION: Take care not to bend the assembly straight up as the encoder wheel may be
damaged.
OR
The encoder sensor (A000126) can be removed first so the encoder wheel does not get damaged.
Carefully use a small flat screwdriver to pry the sensor from the frame. Follow direction above.
When replacing the sensor, line up the sensor from underneath then snap in place.
