DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 37
.
Step
Procedure
4

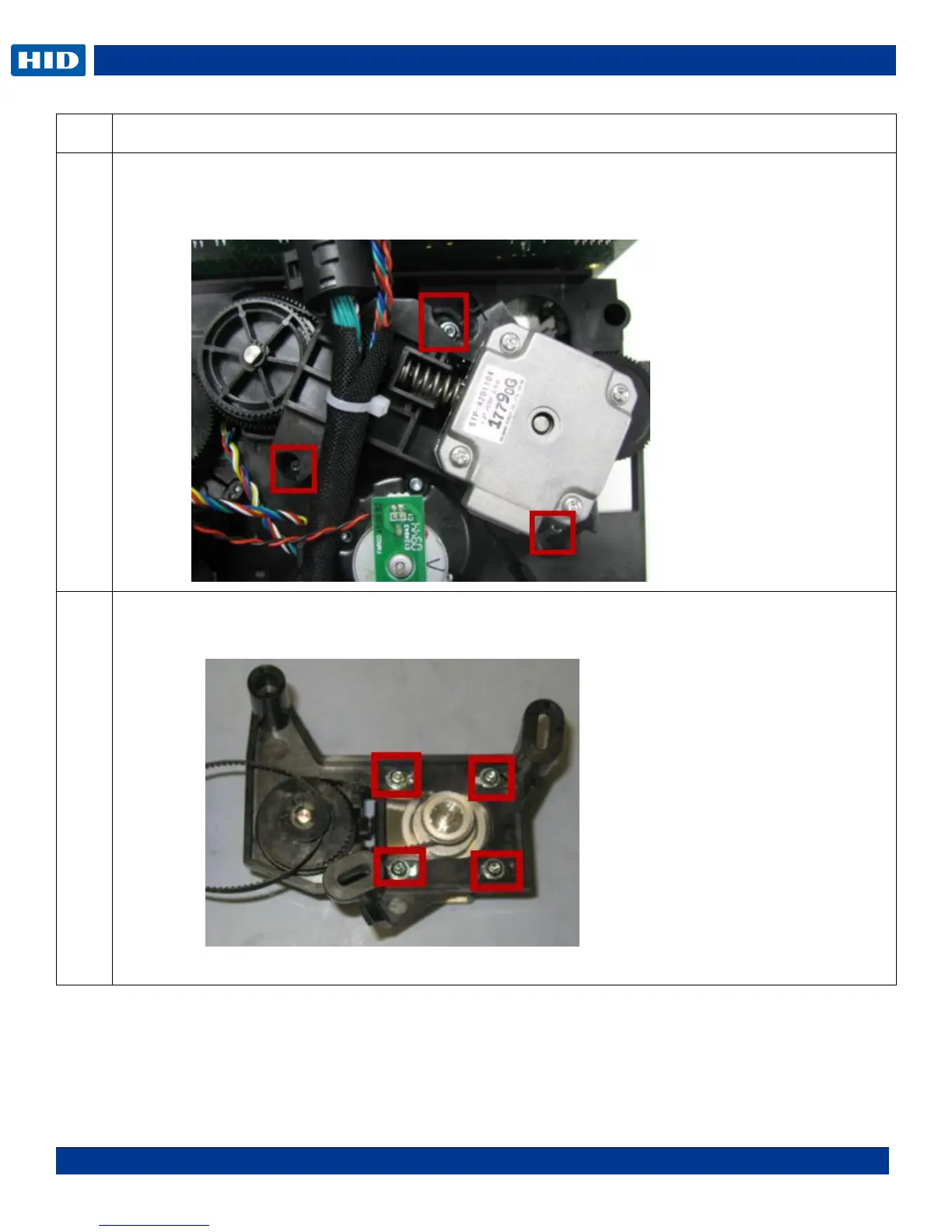

Remove the 3 screws that hold the Motor/Mount to the printer frame. (Make NOTE: of where the 2
screw/washers go and the one machine screw. Remove the printhead cable for more clearance)
The motor is attached to a plastic mounting frame.
5
Remove the 4 screws that hold the stepper motor to the mount frame.
One belt (F000424) will come off of the platen roller pulley/gear (D900429).
(Caution: Spring may pop out. Safety glasses required)
