DAZZLER
TM
system manual Part I : installation & operation 5.6

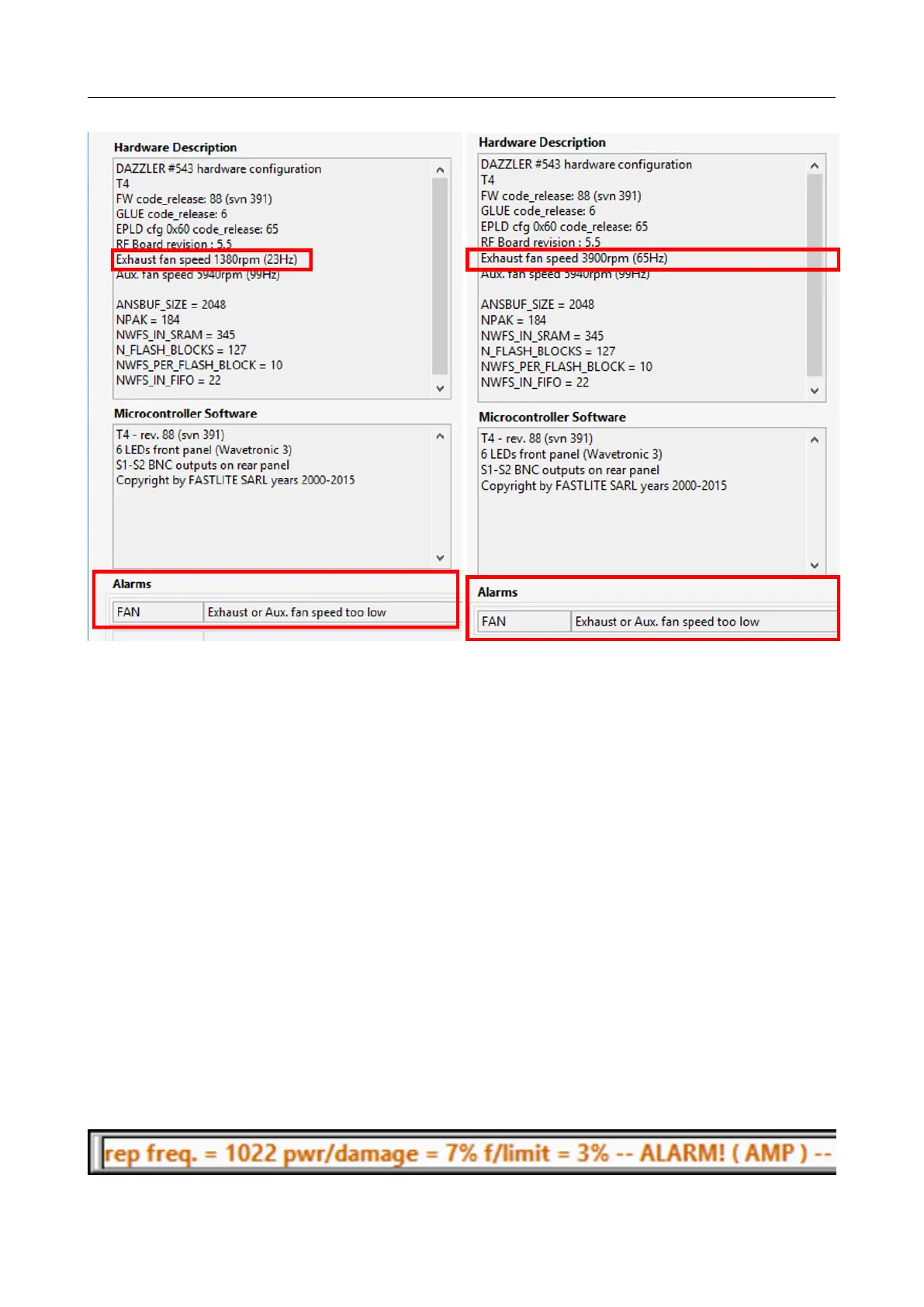

Figure 5.19: Exhaust fan alarm present
Curative actions:
Immediate: switch off the generator as soon as feasible. Do not operate with this fault.
Long term: liaise with Fastlite for a replacement unit.
Aux fan speed
The Aux fan is the fan within the RF amplifier module. It is located behind the generator
front panel. Its nominal speed is ≈ 5900rpm. An alarm is raised when the speed is below 50%
of nominal. In this case, the message ”FAN: Exhaust or Aux. fan speed too low” appears in the
alarm box of the monitor configuration panel as for the exhaust fan alarm. On the software
front panel, the poll message indicates that the fan alarm has been raised.
Curative actions:
Immediate: switch off the generator as soon as feasible. Do not operate with this fault.
Long term: liaise with Fastlite for a replacement unit.
RF Amplifier temperature
V3.00 - 8
th
April 2019 (ContentsTable) (FiguresTable) 56/94
