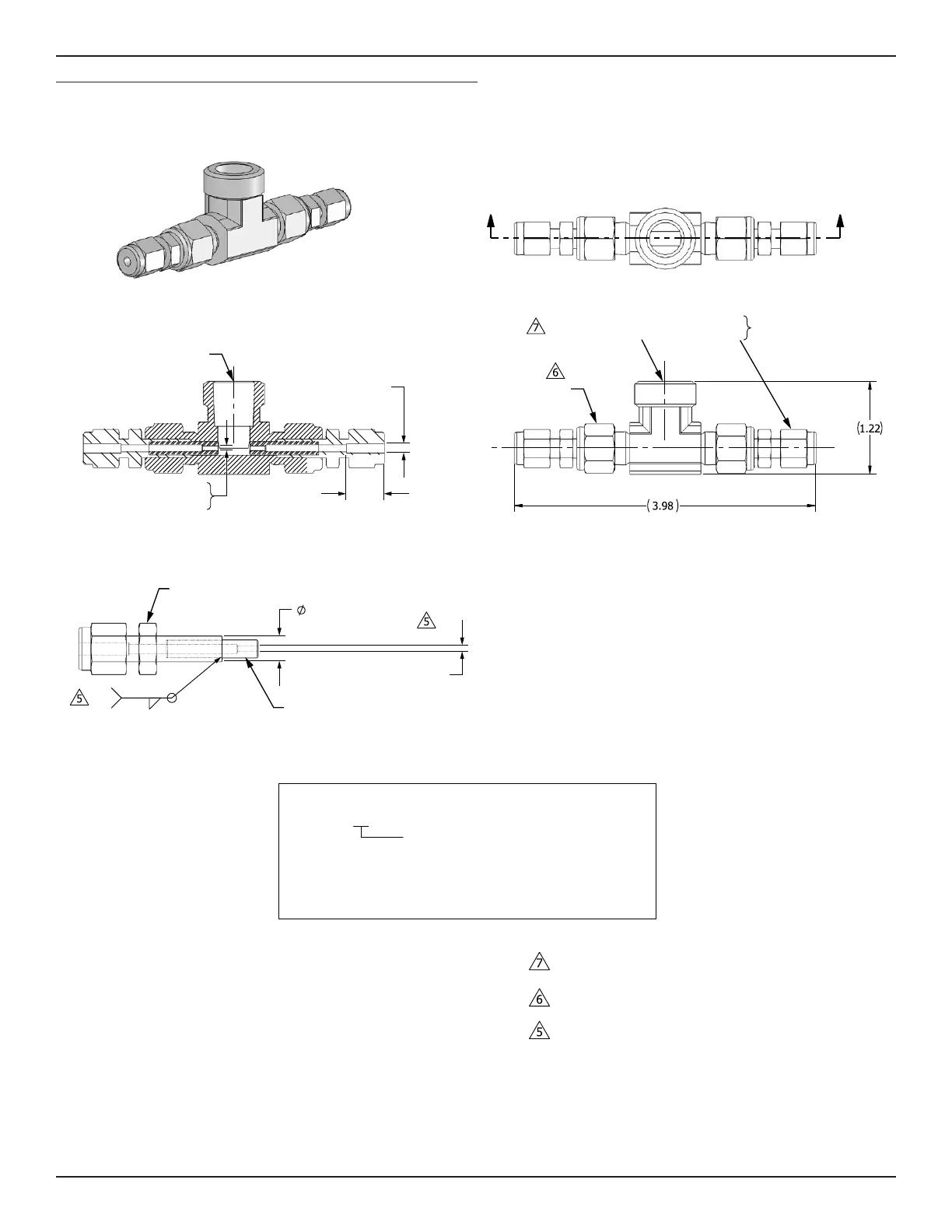

FCI FS10A - FS10 1;4-Inch Tube Tee Assy with 1;8 Tube Adapters and Injection Tubes

FS10 Series
10 Fluid Components International LLC
OPTIONAL TEE REPLACEMENT FOR HAMLET TEE
AVAILABLE ON REQUEST.
4. PRESSURE RATING, PER MAX. ALLOWED FS10A.
INJECTION TUBE ID
01 = COMPLETE TEE ASSY, .094 I.D.
02 = COMPLETE TEE ASSY, .063 I.D.
11 = REDUCER SUB-ASSY ONLY, .094 I.D.
12 = REDUCER SUB-ASSY ONLY, .063 I.D.
94 = PAIR (2) OF REDUCER SUB-ASSY .094 I.D.
63 = PAIR (2) OF REDUCER SUB-ASSY .063 I.D.
CONFIGURATION:
021865-XX
3. MATERIAL: ALL MATERIALS 316 OR 316L STAINLESS STEEL.
2. UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE
IN INCHES. DIMENSIONS IN SQUARE BRACKETS
ARE IN [MILLIMETERS].
1.
NOTES: UNLESS OTHERWISE SPECIFIED.
INTERPRET DIMENSIONING AND TOLERANCING IN
ACCORDANCE WITH ASME Y14.5 - 2009.
TIGHTEN BOTH REDUCER ASSEMBLIES INTO TEE
HAND TIGHT, PLUS 3/4 TURN.
INSERT INJECTION TUBE INTO TUBE REDUCER TO
BOTTOM. WELD AND DRESS AS NEEDED TO
MAINTAIN .25 DIAMETER.
-01, -02 CONFIG
A A
SECTION A-A
-02 CONFIG SHOWN
REDUCER SUB-ASSY
-11, -12 CONFIG
TIGHTEN 1/4" TUBE TEE
COMPRESSION NUT,
2X
(1/8" TUBE (OD)
COMPRESSION
FITTINGS), 2X
REDUCER
SUB-ASSY, 2X
BRANCH TEE, FEMALE,
FNPT, HAMLET
1/4 NPT
INJECTION TUBE
1/32
MD
TUBE REDUCER FITTING, COMPRESSION TUBE END
.094 DIA. INJECTOR, -01 ONLY
.063 DIA. INJECTOR, -02 ONLY
2X
(.50)
(FOR CUSTOMER
TUBE INSERTION LG.)
-01 = .094 I.D.
-02 = .063 I.D.
.25 DRESS WELD
FLUSH IF NECESSARY
INJECTION TUBE, -11 = .094 ID
INJECTION TUBE, -12 = .063 ID
C01438-1-1
FS10 1/4-Inch Tube Tee Assy With 1/8” Tube Adapters And Injection Tubes
