Flow Rate Indication on PC Interface
The PC interface provides a convenient means of capturing zero, span and switch point settings in lieu of using the buttons. Flow units are
shown in percent, trend with flow and are repeatable.
Power Supply Interface Kit
FCI offers an interface kit that makes it easy to connect to a notebook computer in the field. Kit PN number 022083-02 is described on page 51
of this manual. The power supply interface can be used to simply power up the unit using an AC connection or provide monitoring of the relay
function and/or 4-20 mA output.
Windows PC Interface Software

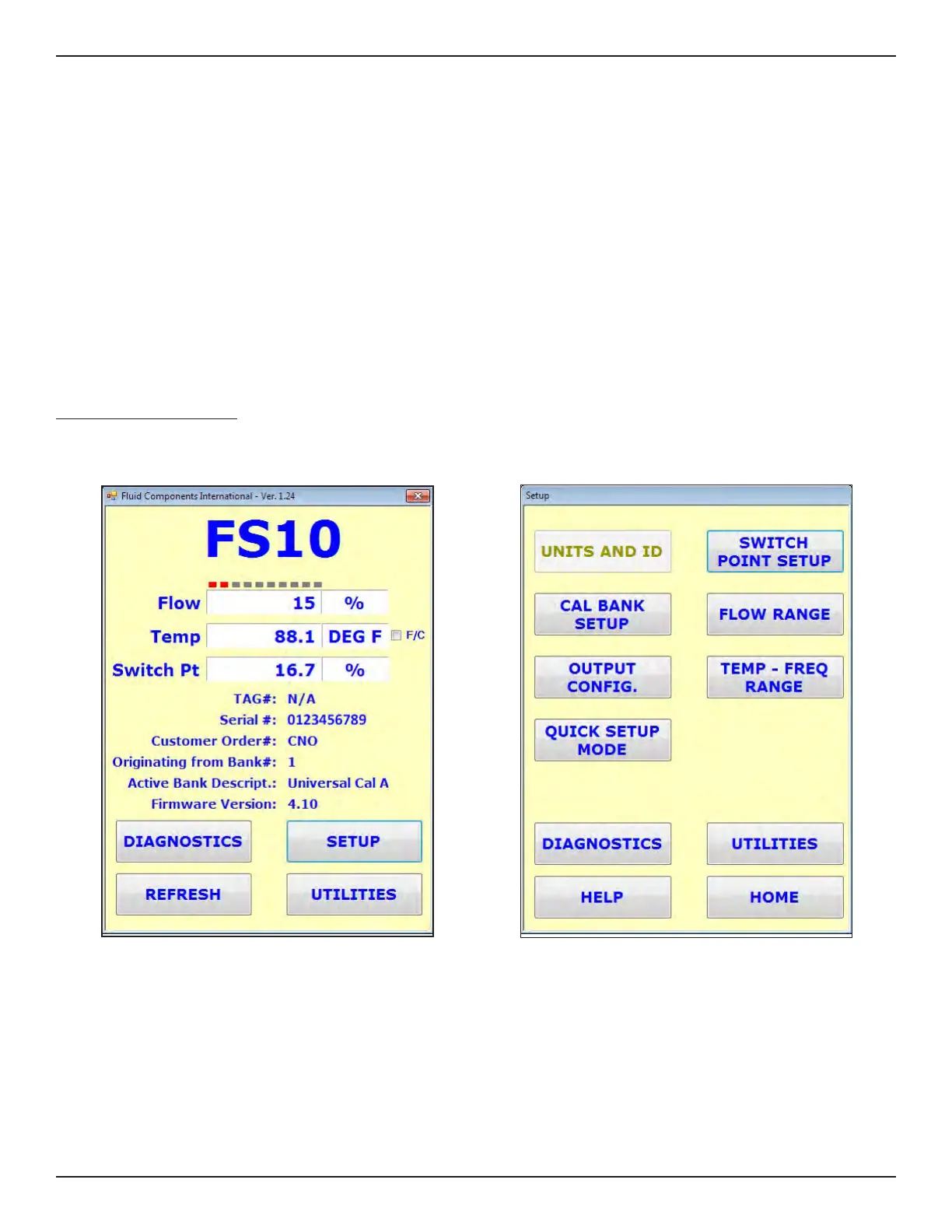

Below are typical screen shots of the FS10 Windows-based PC interface application. A brief description is given for each window (screen).
Display Window
FS10 PC interface Home screen.
Setup Window
Various setup options are accessed via the Setup window.
