FS10 Series
Fluid Components International LLC 63
Field Wireable Connector, M12, 8-Pin Male/Female, FS10
A
C01200-1-2

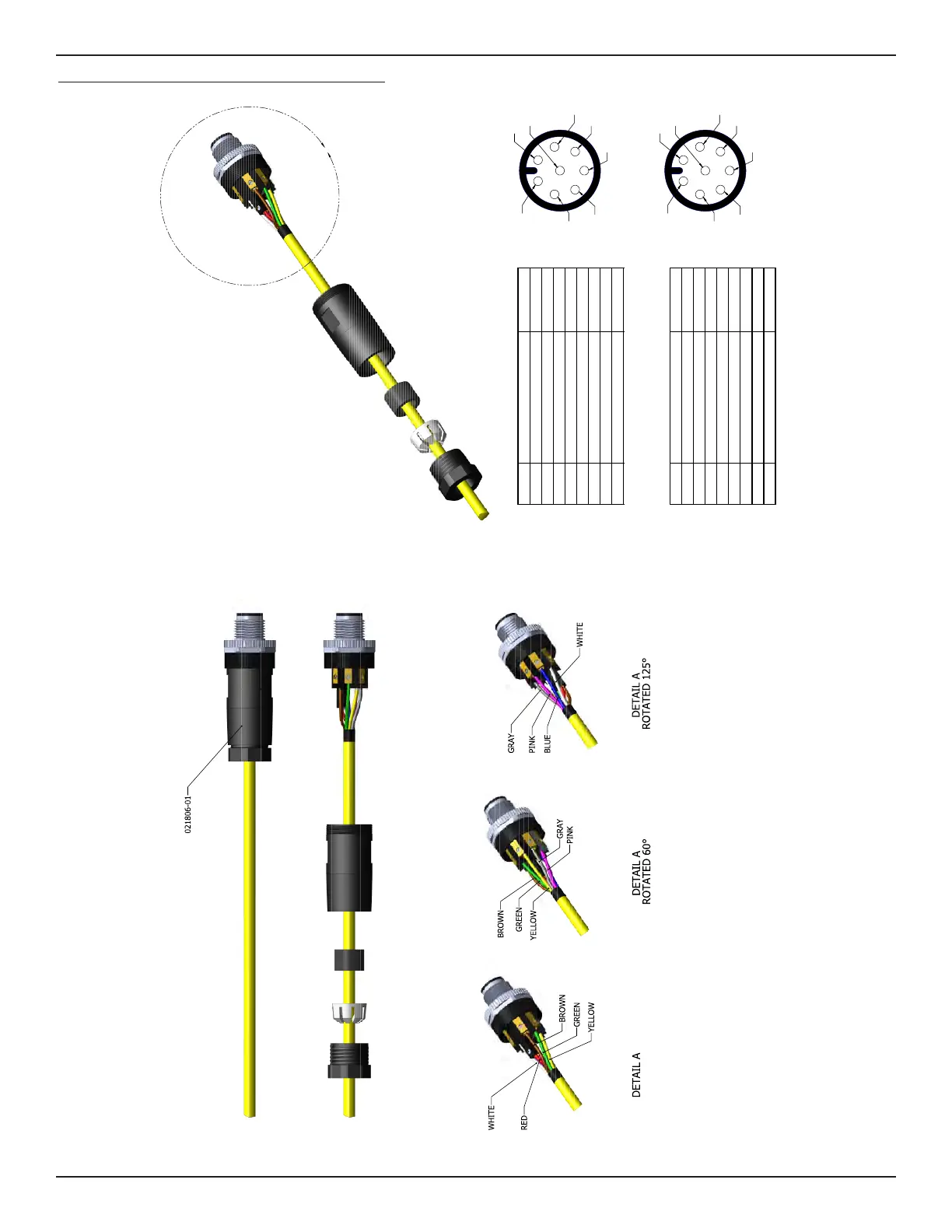

1. PICTORIAL OF HOW CONNECTOR 021806-01 (MALE, SHOWN ABOVE) IS WIRED. FEMALE VARIANT 021806-02 IS WIRED SIMILARLY. NOTES: UNLESS OTHERWISE SPECIFIED
1
7
6
5
4
3
2
8
1
7
6
5
4
3
2
8
FEMALE M12
MALE M12
Pin Wiring for Power & I/O (Female M12, Cable Conn.)
Pin
Description
Wire Color
1
Power, +21.5 to +30 VDC
White
2
Power/Signal Return
Brown
3
4-20 mA Output
Green
4
Relay NC/Open Collector
Yellow
5
Relay Com./Open Col., Not Used
Gray
6
Relay NO/Open Col., Not Used
Pink
7
RS232 RxD
Blue
8
RS232 TxD
Red
Pin Wiring for Remote Probe Applications, FS10A Only
(Male M12, Cable Conn.)
Pin
Description
Wire Color
1
ACT DRIVE+
White
2
ACT SENSE+
Brown
3
ACT SENSE-
Green
4
ACT & REF DRIVE-
Yellow
5
REF DRIVE+
Gray
6
REF SENS+
Pink
7
REF SENS-
Blue
8
CABLE & EARTH GND
Red
