FS10 Series
14 Fluid Components International LLC

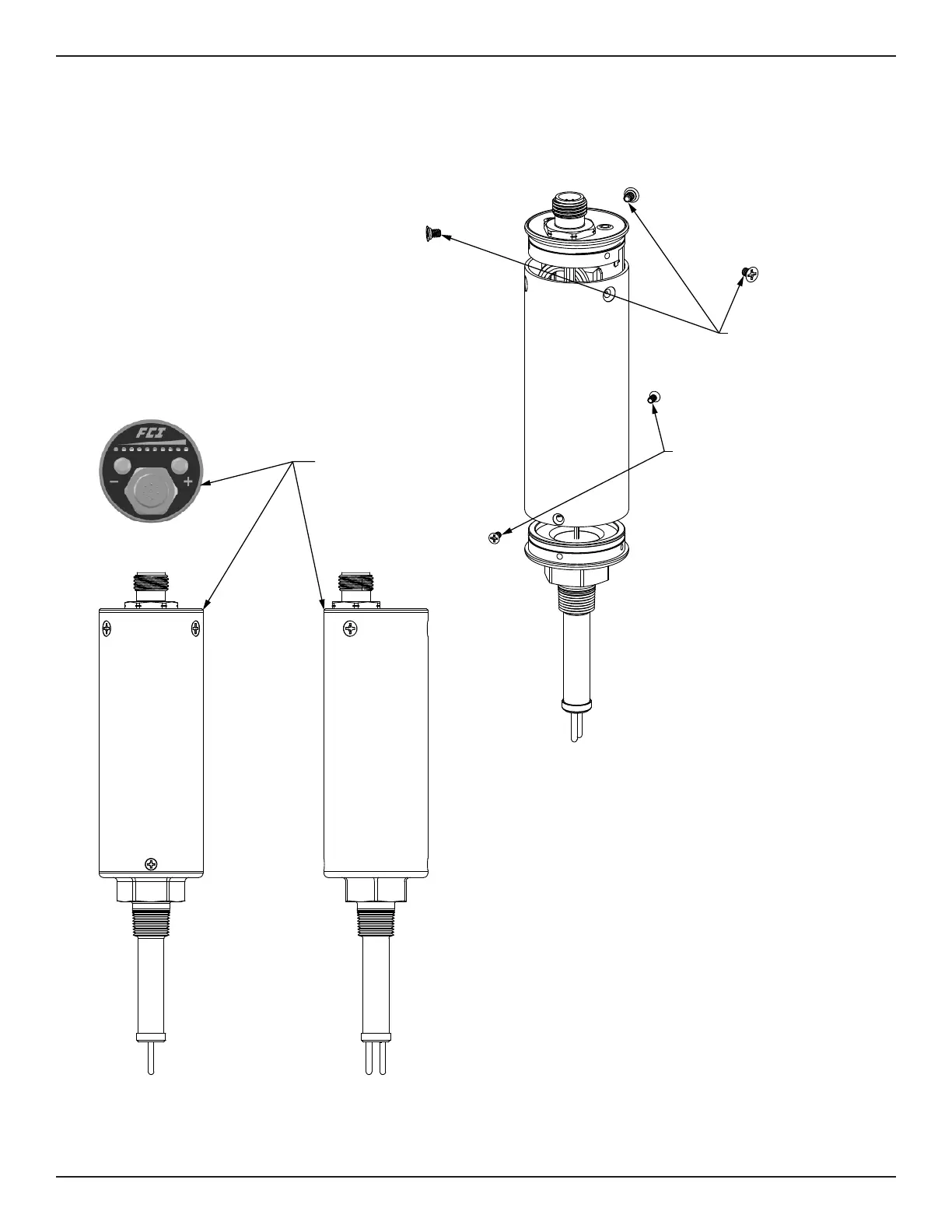

Remove screws to reclock
probe orientation 90° or 180°.
Apply Loctite Blue to screw
threads before reinstalling.
CAUTION: Unit is supplied with
sufficient wire slack to rotate probe
180° in a single rotation for initial
set up. Do not over-rotate.
Remove only to
change jumper
selection on board
per diagram.
BOOT REMOVED FOR
CLARITY
C01342-1-1
Sensor Subassembly
