FS10 Series
34 Fluid Components International LLC

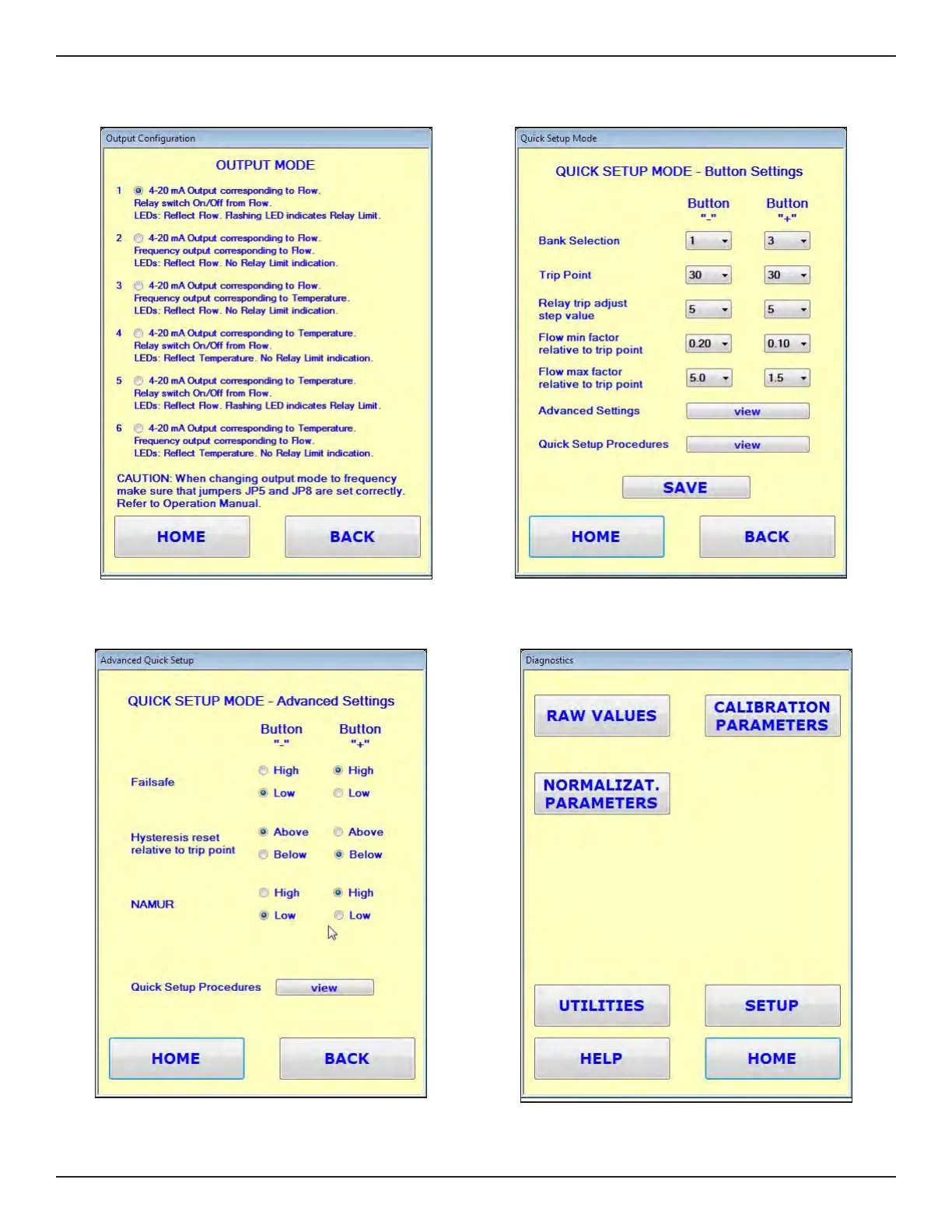

Setup/Output Configuration Window
Selects 4-20 mA and LED mapping (flow or temperature)
Setup/Advanced Quick Setup Window
Sets (+) and (–) buttons for fail-safe, hysteresis and NAMUR modes.
Setup/Quick Setup Mode Window
Sets (+) & (–) button parameters for quick setup.
Diagnostics Window
Various diagnostic options are accessed via the Diagnostics window.
