Festo CMSH - Mounting CMSH-S-VDE1

Festo — CMSH — 2021-10
Assembly
19
2.
3
4
2
1
5

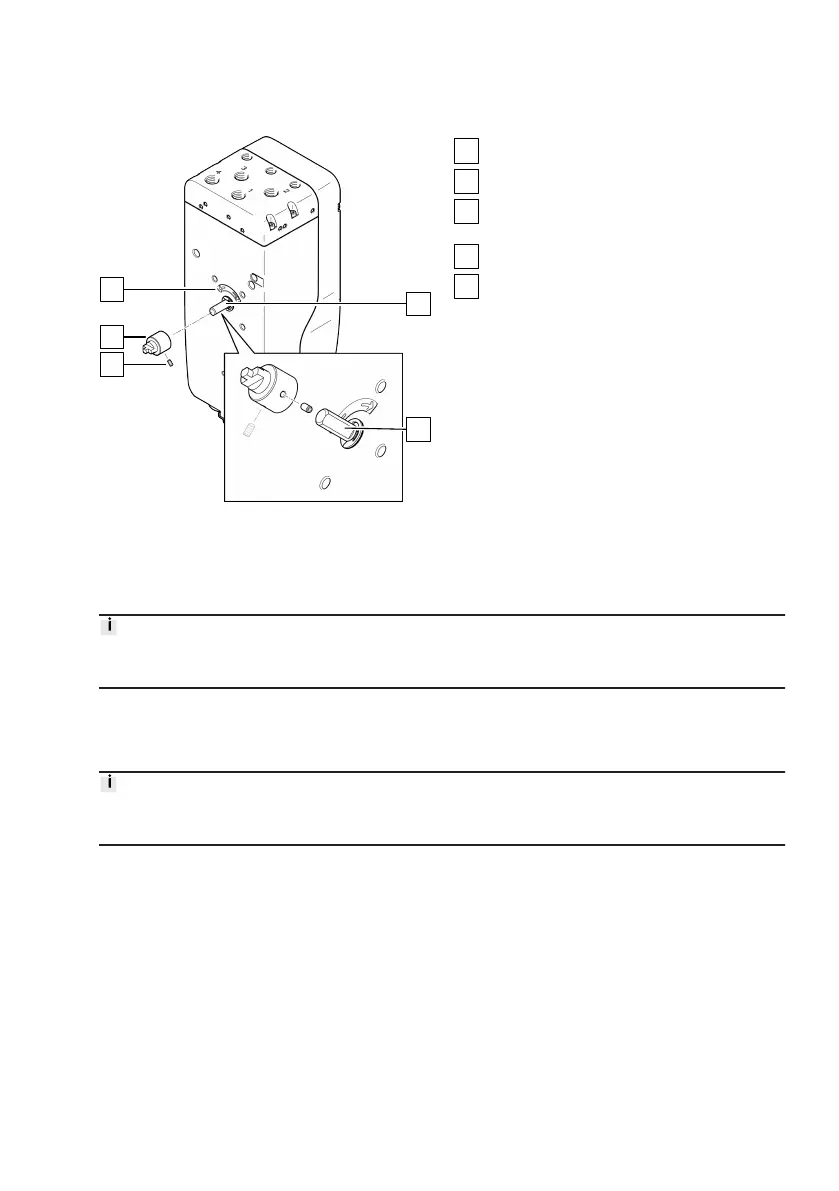

Fig. 10: Shaft of the positioner
1
2 threaded pins
2
Shaft adapter
3
Detection range of the position/angular
detection position sensor
4
Shaft of the position sensor
5
Flat section of the shaft
1.
Adjust the shaft by hand so the flat section of the shaft [5] is opposite the sensing range.
Secure the shaft adapter with a threaded pin, depending on the direction of rotation of the drive.
– Tightening torque: 0.5 Nm ± 15%
Depending on the direction of rotation of the drive, the shaft adapter must be fixed to the flat section
of the shaft with the threaded pin through one of the threaded holes on the shaft adapter.
5.2.2 Mounting CMSH-S-VDE1-… on the semi-rotary drive
This chapter describes the attachment of the positioner to a semi-rotary drive in accordance with
VDI/VDE 3845-1, IEC 60534-6-2.
Use a mounting kit for semi-rotary drives in accordance with VDI/VDE 3845-1, IEC 60534-6-2 , acces-
sories
è
3 Additional information.
