Installation
25
6 Installation
6.1 Pneumatic installation
• The fittings, pressure gauge and silencer are not in scope of delivery.
• Pressure gauge connections are only available with product variant CMSH-...-V-....
• The working port (4) is only available for product variant CMSH-...-D-... and, depending on the
version, for product variant CMSH-...-SD-....
6.1.1 Installing the pneumatics of the CMSH-…-VDE1-…
6
7
2
1
3 4
5

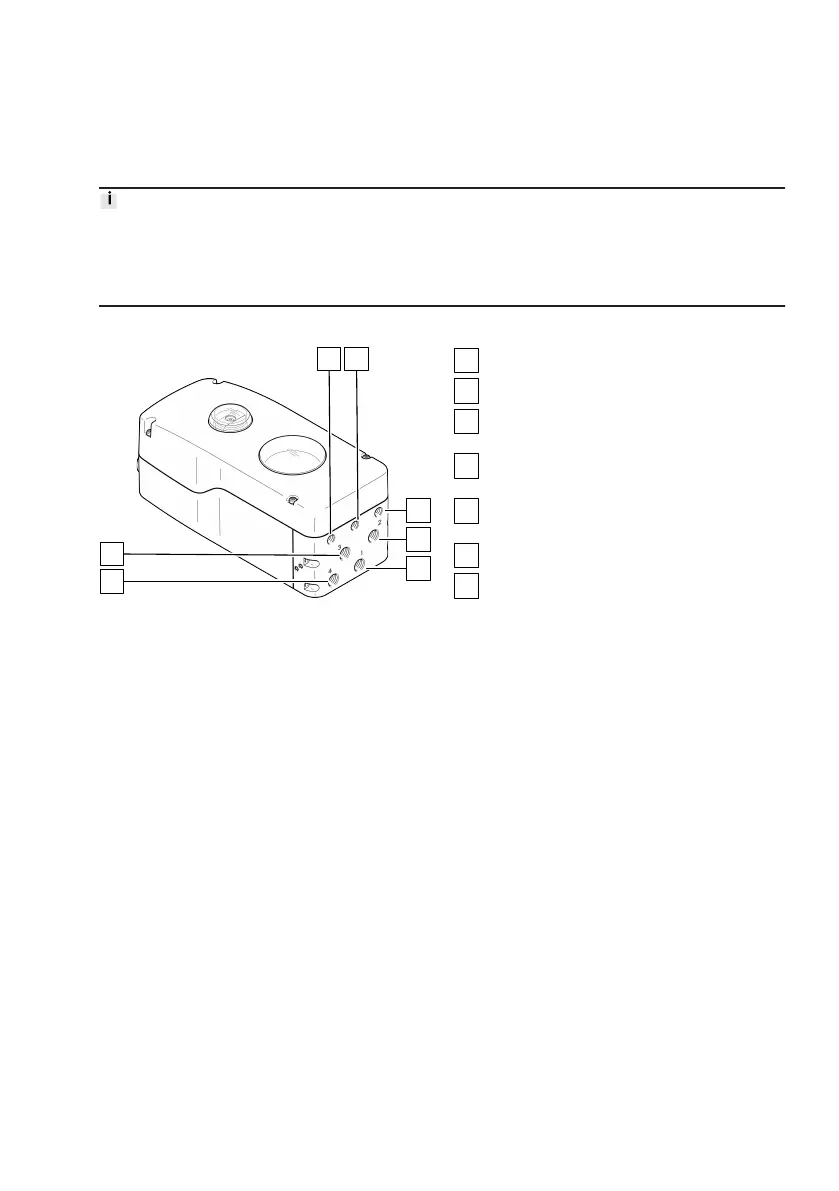

Fig. 16: Positioner CMSH-…-VDE1-...
1
Working port (4)
2
Exhaust port (3)
3
Pressure gauge connection for working port
(4)
4
Pressure gauge connection for supply port
(1)
5
Pressure gauge connection for working port
(2)
6
Working port (2)
7
Supply port (1)
1.
Make sure that no energy is connected to the device.
2.
Select suitable fittings and silencers. Select pressure gauges suitable for the CMSH-...-V-...
product variant
è
3 Additional information.
3. Screw the fittings, silencers and pressure gauges into the corresponding pneumatic ports.
4.
Connect the compressed air lines to the fittings.
5.
Seal unused connections with blanking plugs.
6.1.2
Installing the pneumatics of the CMSH-…-VDE2-…
The air supply is integrated between the positioner and the drive. The supply port (1), working port
(2) and working port (4) are connected to the drive via a control plate, chapter
è
5.2 Mounting on
semi-rotary drives and chapter
è
5.3 Mounting on linear drives. Additional tubing is not required.
