Festo CMSH - Mounting CMSH-S-VDE2

20
Festo — CMSH — 2021-10
Assembly
1
2
5
6
4
3

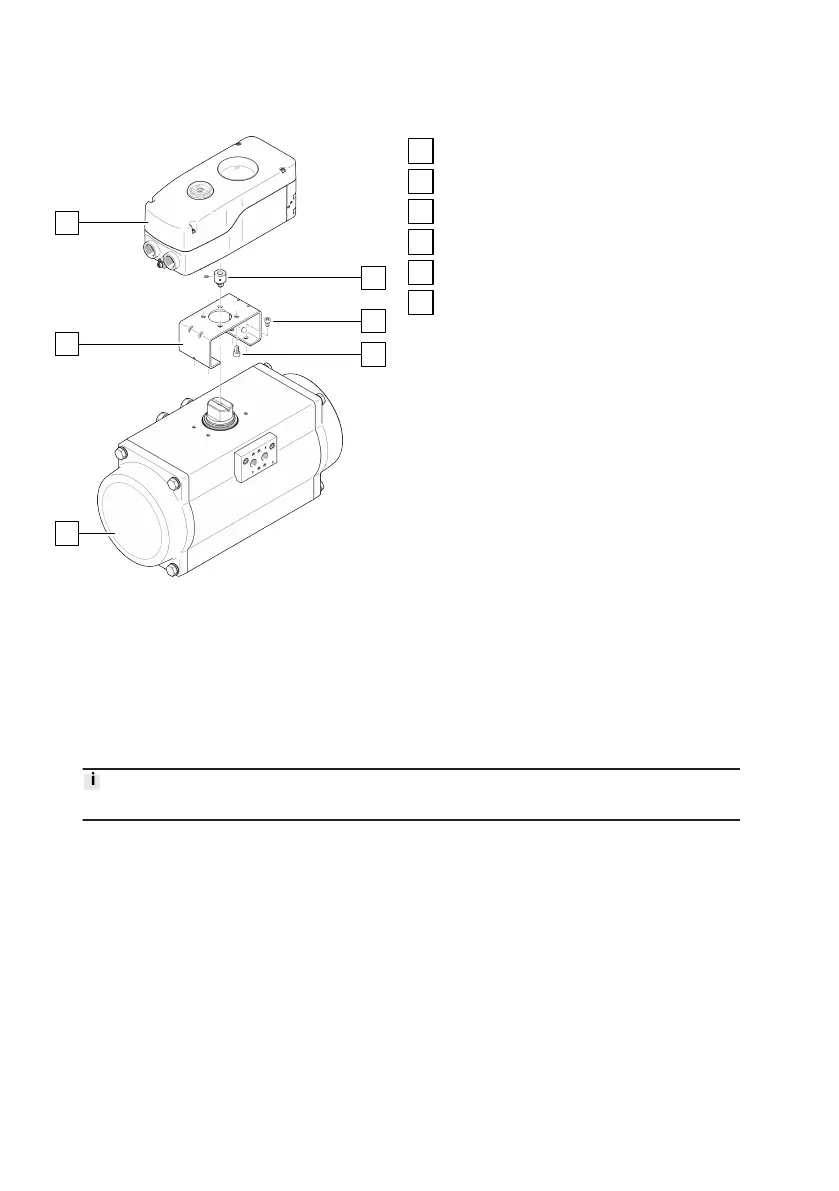

Fig. 11: Mount CMSH-S-VDE1-… on semi-rotary
drive
1
Semi-rotary drive
2
Mounting adapter
3
Positioner CMSH-S-VDE1-...
4
Shaft adapter
5
4 M5x8 retaining screws
6
4 M6x10 retaining screws
1.
Determine the direction of rotation of the semi-rotary drive.
2.
Fasten the mounting adapter to the semi-rotary drive with 4 M5x8 retaining screws.
–
Tightening torque: 3 Nm ± 10%
3. Place the positioner with the shaft adapter on the mounting adapter and align it. The position
sensor must be within the sensing range of the semi-rotary drive
è
5.2.1 Mounting the shaft
adapter on the CMSH-S-....
Make sure that transverse loads do not act on the shaft of the positioner during alignment.
4.
Fasten the mounting adapter to the positioner with 4 M6x10 retaining screws.
–
Tightening torque: 5 Nm ± 10%
5.2.3 Mounting CMSH-S-VDE2-... on the semi-rotary drive
This chapter describes the mounting of the positioner on a semi-rotary drive in accordance with
VDI/VDE 3847-2.
