Assembly
21
4.
5.2.3.1 Mounting CMSH-S-VDE2-… on control plate DADG-FM-F9-VDE2
1
2
4
6
5
7
3

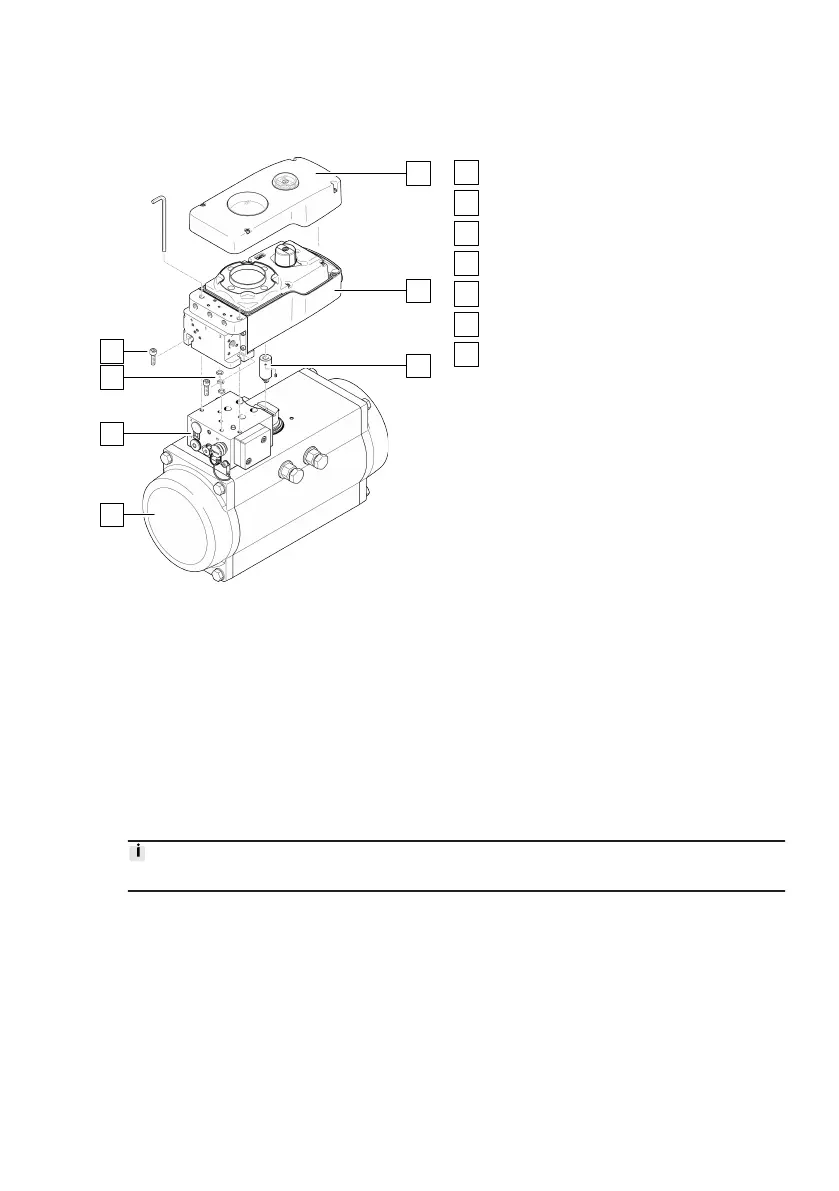

Fig. 12: Mounting CMSH-S-VDE2-… on control
plate DADG-FM-F9-VDE2
1
Semi-rotary drive DFPD-...C-VDE2
2
Control plate DADG-FM-F9-VDE2
3
Seals
4
2 M6x20 retaining screws
5
Housing cover
6
Positioner CMSH-S-VDE2-…
7
Shaft adapter
1.
Make sure that the control plate is mounted on the semi-rotary drive.
2.
Determine the direction of rotation of the semi-rotary drive.
3. Unscrew the 4 housing cover screws and remove the housing cover.
Insert the included seals on the bottom of the pneumatic manifold block into the specified slots.
– Ensure that the seals are correctly positioned.
5.
Insert 2 M6x20 retaining screws into the cut-outs on the pneumatic manifold block.
6. Place the positioner with the shaft adapter on the control plate and align it. The position sensor
must be within the sensing range of the semi-rotary drive
è
5.2.1 Mounting the shaft adapter on
the CMSH-S-....
Make sure that transverse loads do not act on the shaft of the positioner during alignment.
7.
Fasten the positioner to the control plate with 2 M6x20 retaining screws.
– Tightening torque: 3 Nm ± 10%
8. Place the housing cover on the positioner and tighten the 4 housing cover screws.
–
Make sure that the seal is positioned correctly.
–
Tightening torque: 1 Nm ± 15%
