5.3 Mounting on linear drives
5.3.1 Mounting CMSH-SE-VDE1-D-… on linear drive DFPI-...-E-NB3
This chapter describes the attachment of the positioner to the linear drive with the adapter kit
DADG-AK-F6-A2.
Use adapter kit DADG-AK-F6-A2 for linear drive DFPI-...-E-NB3, accessories
è
3 Additional information.
1
4
3
2
5
6

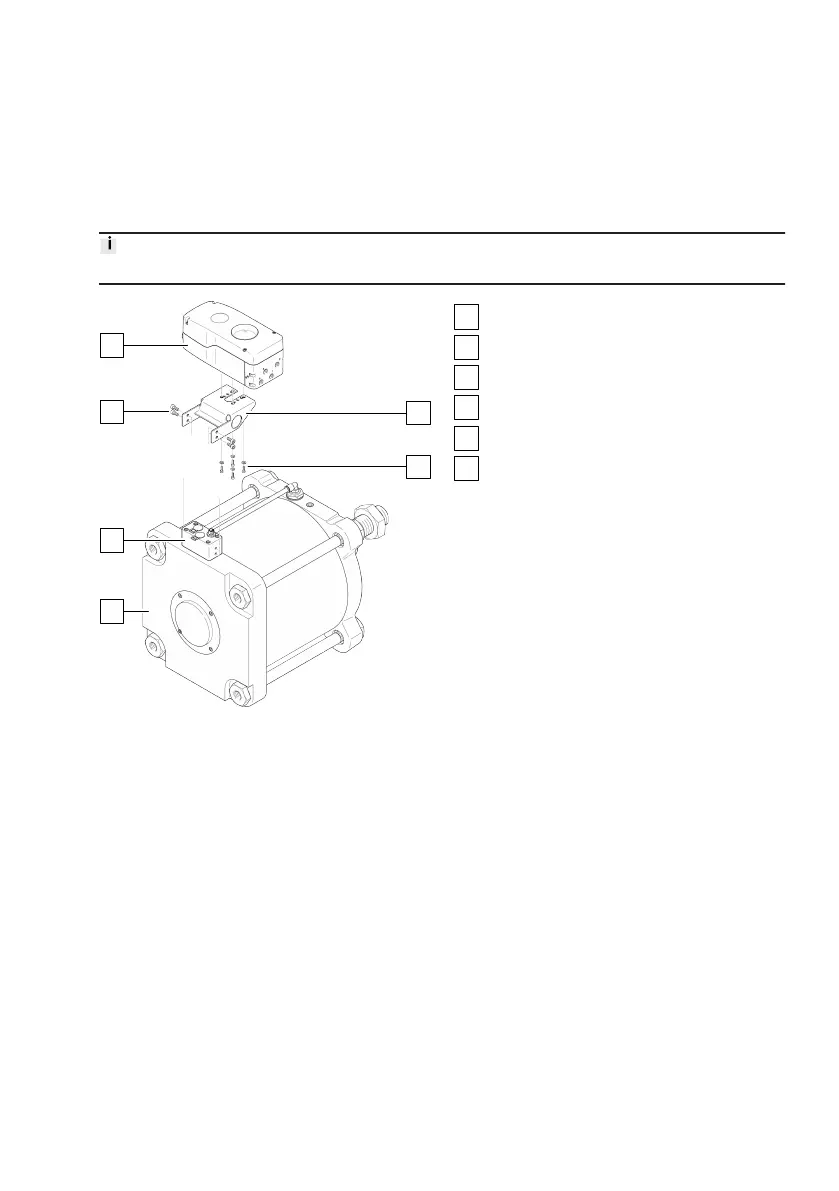

Fig. 14: Mounting CMSH-SE-VDE1-D-… on linear
drive DFPI-...-E-NB3
1
Linear drive DFPI-...-E-NB3
2
Housing (flange type socket)
3
4 M6x10 retaining screws
4
Positioner CMSH-SE-VDE1-D-...
5
Adapter kit DADG-AK-F6-A2
6
4 M6x10 retaining screws
1. Fasten the adapter kit to the positioner with 4 M6x10 retaining screws.
–
Tightening torque: 5 Nm ± 10%
2. Fasten the positioner to the housing (flange type socket) with the adapter kit using 4 M6x10
retaining screws.
– Tightening torque: 10 Nm ± 10%
5.3.2 Mounting CMSH-SE-VDE2-D-… on linear drive DFPI-...-E-NB3VM12
This chapter describes the attachment of the positioner to linear drive DFPI-...-E-NB3VM12 based on
the standard VDI/VDE 3847-2.
