Festo CMSH - Product overview; Structure

Festo — CMSH — 2021-10
Product overview
7
4 Product overview
4.1 Structure
4.1.1
Product design
2
7
6
9
4
1
12 1 11
3
5
7
10
8

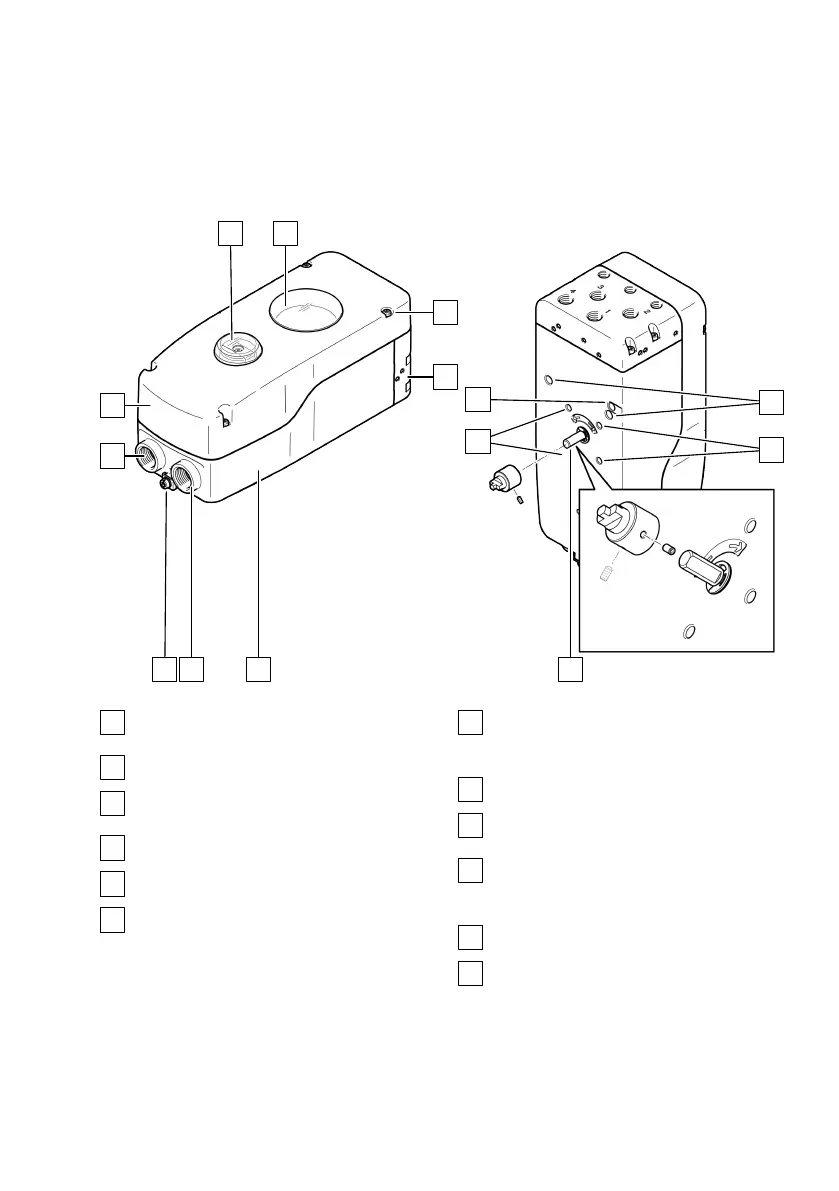

Fig. 1: Product design
1
Threaded hole for mounting cable con-
nector
2
Housing cover
3
Position indicator (for product variant
CMSH-S-...)
4
Inspection window for the display
5
4 housing cover screws
6
Pneumatic manifold block
7
Mounting thread for mounting kit for semi-
rotary drives in accordance with VDI/VDE
3845-1
8
Check valve
9
Mounting thread for mounting kit for linear
actuators in accordance with IEC 60534-6-1
10
Shaft of the integrated position sensor
for displacement/angle measurement (for
product variant CMSH-S-...)
11
Housing bottom part
12
Functional earth (FE), equipotential
bonding
