Commissioning
37
The positioner must already be initialised for this operating mode. A change in the position becomes
visible via the feedback of the actual position.
7.2.3.2 ‘Manual venting’ manual manipulated variable mode

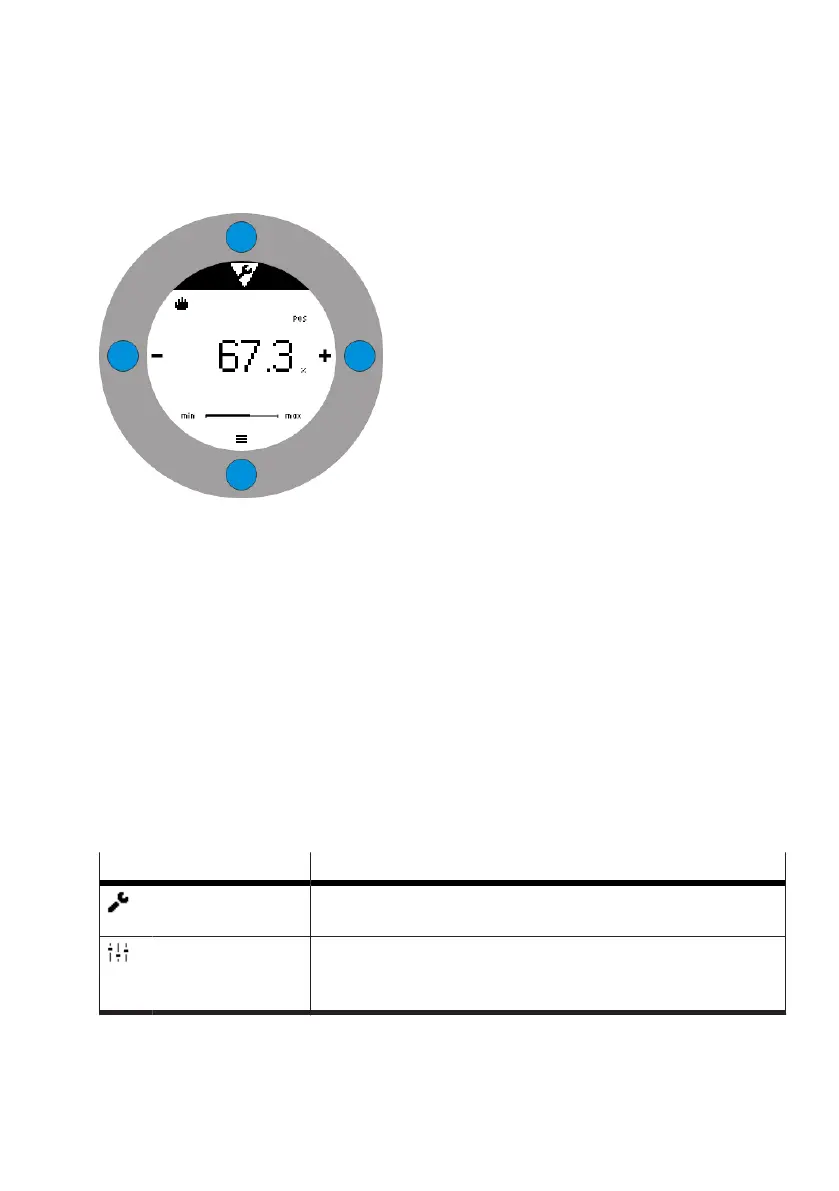

Fig. 24: Manual manipulated variable mode
In this operating mode, the position of the drive can be changed by manual pressurisation and
exhausting when the left or right button is actuated. This enables the position of the positioner to
be changed. If the positioner is already initialised, the actual position is displayed. A change in the
position becomes visible via the feedback of the actual position.
The bar graph below the actual position shows the current value of the position sensor. The minimum
and maximum values determine the operating range of the position sensor.
Check the mounting situation and sensing range of the position sensor
1.
Approach both end positions with the left and right buttons.
Ä
The bar graph shows the position change.
Ä
If the sensing range is exceeded, a message is output.
2. If one of the end positions lies outside the sensing range, correct the attachment of the positioner
on the drive or the alignment of the shaft adapter
è
5 Assembly.
7.2.4
‘Settings’ menu
Menu option Description
Parameterization Basic parameterisation can be carried out in this area.
è
7.2.4.1 Parameterization
Control The parameters relevant for the control can be configured in this
area.
è
7.2.4.2 Control
