Commissioning

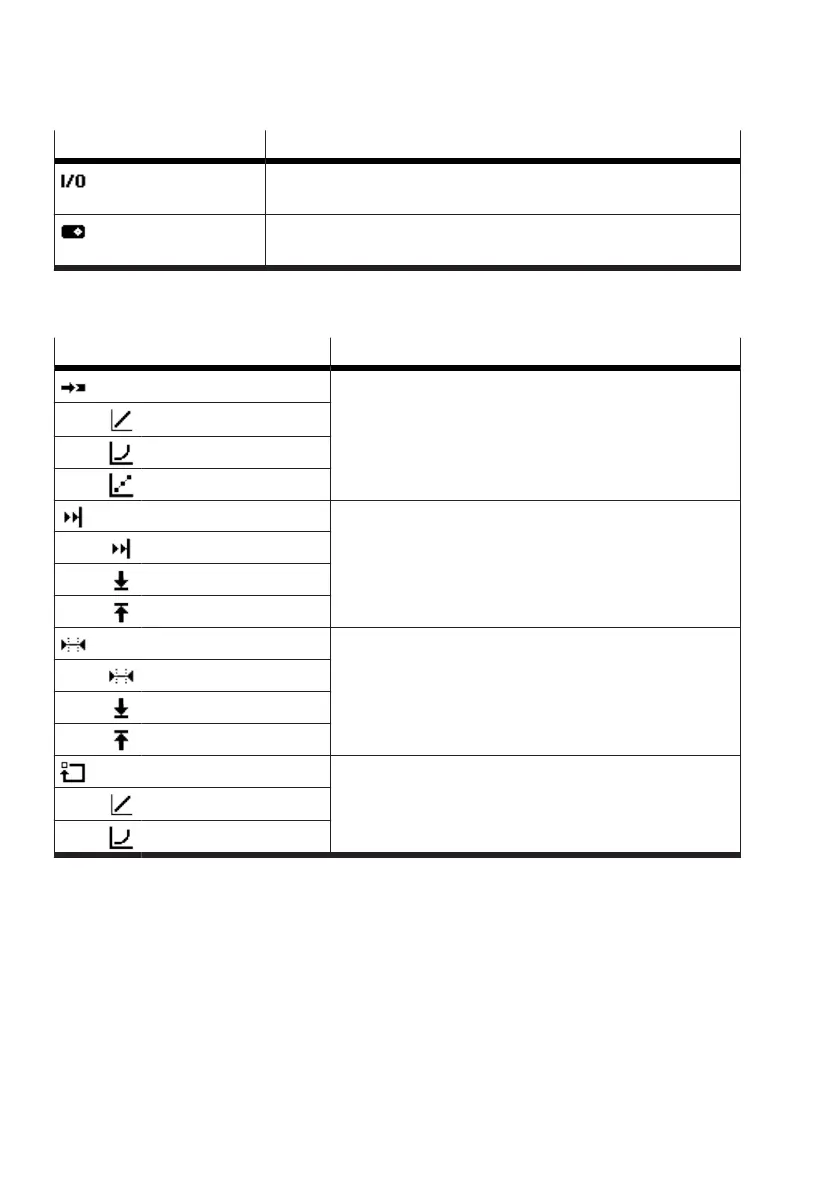

Menu option Description
Digital I/O The digital inputs and digital outputs can be configured in this area.
è
7.2.4.3 Digital I/O
Device The device-specific parameters can be configured in this area.
è
7.2.4.4 Device
Tab. 26: ‘Settings’ menu
7.2.4.1 Parameterization
Menu option Description
Setpoint The parameters that define the properties of the setpoint
value can be configured in this area.
è
‘Setpoint’ menu
Setpoint direction
Type of curve
User curve
Tight close Tight closing can be activated and configured in this area.
è
‘Tight close’ menu
Mode
Lower value
Upper value
Stroke limitation Stroke limitation can be activated and configured in this
area.
è
‘Stroke limitation’ menu
Mode
Lower value
Upper value
Position feedback The parameters that define the properties of the position
feedback at the analogue output can be configured in this
area.
è
‘Position feedback’ menu
Feedback direction
Curve inversion
Tab. 27: Parameterization
‘Setpoint’ menu
Setpoint direction
The ‘Setpoint direction’ parameter defines the relationship between the externally applied setpoint
value and the setpoint position. The direction of action is determined independently of the setpoint
characteristic curve.
