Festo — CMSH — 2021-10
Assembly
3.
6
2
4
3
1
5

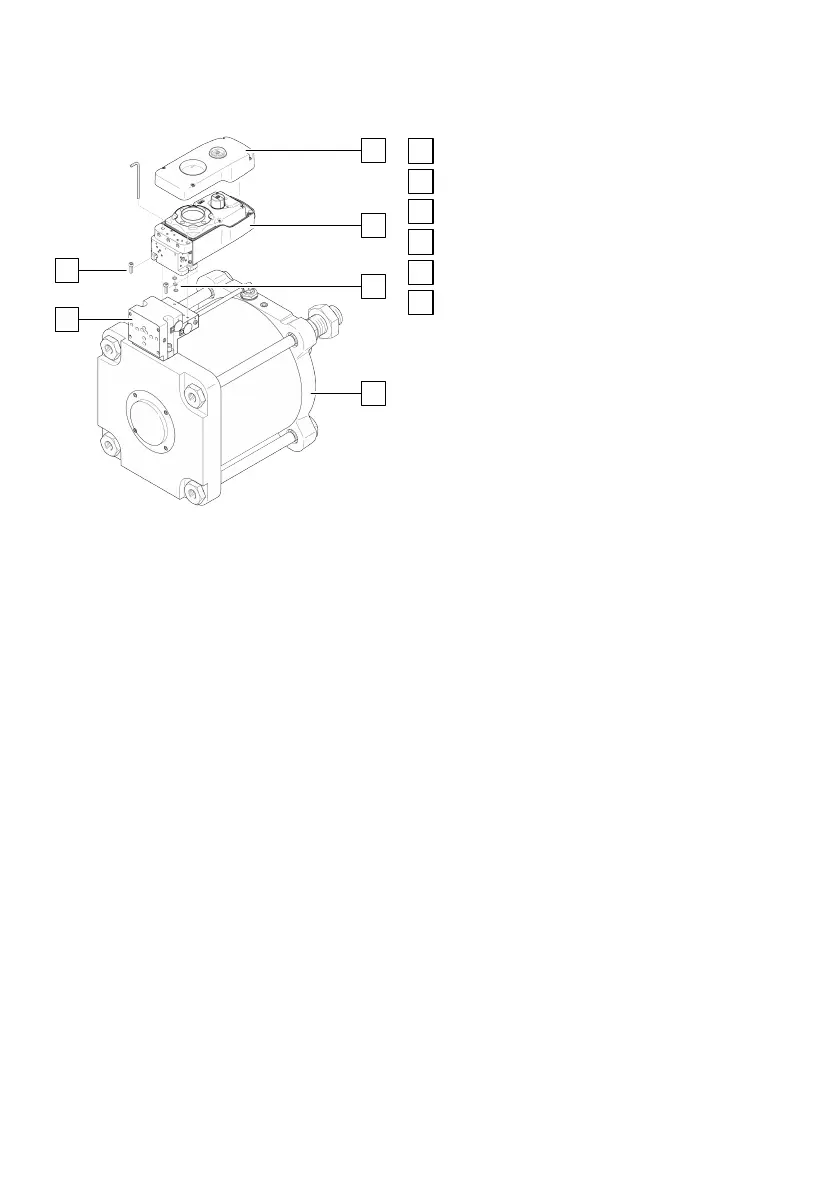

Fig. 15: Mounting CMSH-SE-VDE2-D-… on linear
drive DFPI-...-E-NB3VM12
1
Control plate
2
2 M6x20 retaining screws
3
Housing cover
4
Positioner CMSH-SE-VDE2-D-…
5
Seals
6
Linear drive DFPI-...-E-NB3VM12
1.
Make sure that the control plate is mounted on the linear drive.
2.
Unscrew the 4 housing cover screws and remove the housing cover.
Insert the included seals on the bottom of the pneumatic manifold block into the specified slots.
–
Ensure that the seals are correctly positioned.
4. Insert 2 M6x20 retaining screws into the cut-outs on the pneumatic manifold block.
5.
Place the positioner on the adapter plate of the linear drive and align it.
6.
Fasten the positioner to the adapter plate with 2 M6x20 retaining screws.
– Tightening torque: 3 Nm ± 10%
7. Place the housing cover on the positioner and tighten the 4 housing cover screws.
–
Make sure that the seal is positioned correctly.
– Tightening torque: 1 Nm ± 15%
5.4
Adjusting position indicator on the CMSH-S-...
1.
Unscrew the 4 housing cover screws and remove the housing cover.
2.
Adjust the position indicator by turning it.
3. Place the housing cover on the positioner and tighten the 4 housing cover screws.
–
Make sure that the seal is positioned correctly.
–
Tightening torque: 1 Nm ± 15%
