Installation
2.
4
8 7 6
321
5

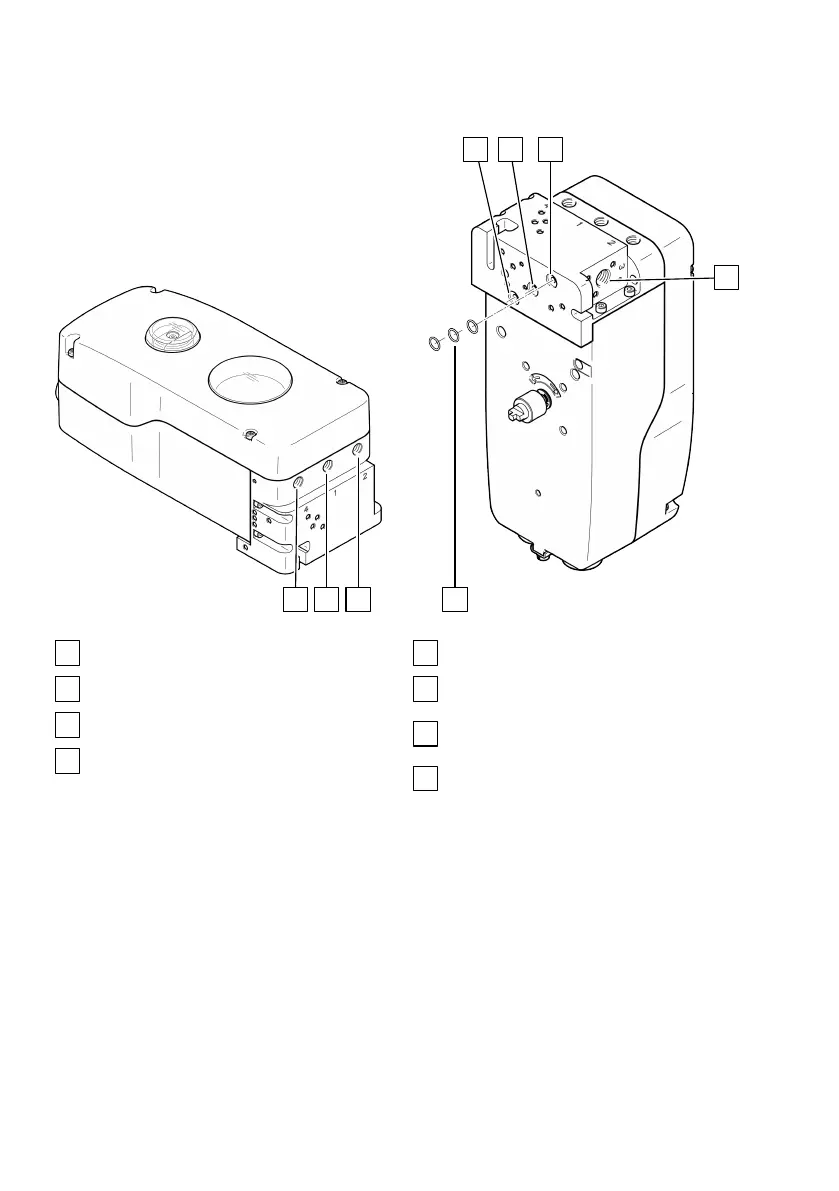

Fig. 17: Positioner CMSH-…-VDE2-…
1
Working port (4)
2
Supply port (1)
3
Working port (2)
4
Exhaust port (3)
5
Seals
6
Pressure gauge connection for working port
(2)
7
Pressure gauge connection for supply port
(1)
8
Pressure gauge connection for working port
(4)
1.
Make sure that no energy is connected to the device.
Insert seals.
–
Ensure that the seals are correctly positioned.
3. Select suitable fittings and silencers. Select pressure gauges suitable for the CMSH-...-V-...
product variant
è
3 Additional information.
4.
Screw the fittings, silencers and pressure gauges into the corresponding pneumatic ports.
5. Connect the compressed air lines to the fittings.
6. Seal unused connections with blanking plugs.
