Commissioning
43
Value Description
inactive Factory setting: stroke limitation inactive.
Lower value active Stroke limitation active at the lower end of the working range.
Upper value active Stroke limitation active at the upper end of the working range.
Both values active Stroke limitation active at the lower and upper end of the working
range
Tab. 34: Mode
If the tight-closing function is active in an end position, the stroke limitation can no longer be activated
there. If it is not possible to change the mode, a message appears on the display.
Lower value
Lower value
Actual position [%]

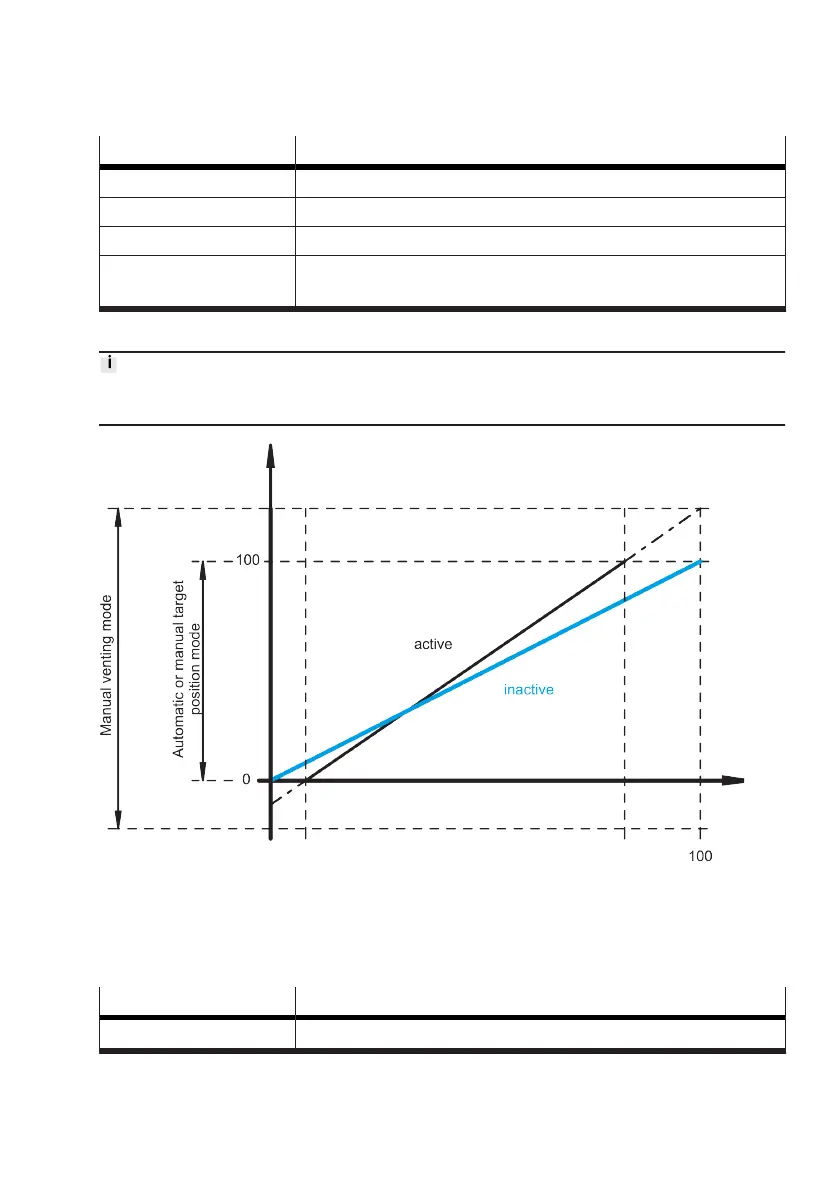

Fig. 29: Stroke limitation
Lower value
The ‘Lower value’ parameter defines the lower value of the stroke limit. This value must be at
least 10.0% below the upper stroke limit.
Value range Description
0.0 … 90.0% Permissible setting range, factory setting: 0.0%
Tab. 35: Lower value
