System power supply,
additional power supply
and valve power supply
Through the interlinking blocks with system, additional and
valve p ower supply of type CPX-GE-EV-S..., CPX-GE-EV-Z... or
CPX-GE-EV-V..., the CPX terminal is supplied with operating
andloadvoltage.
Plug

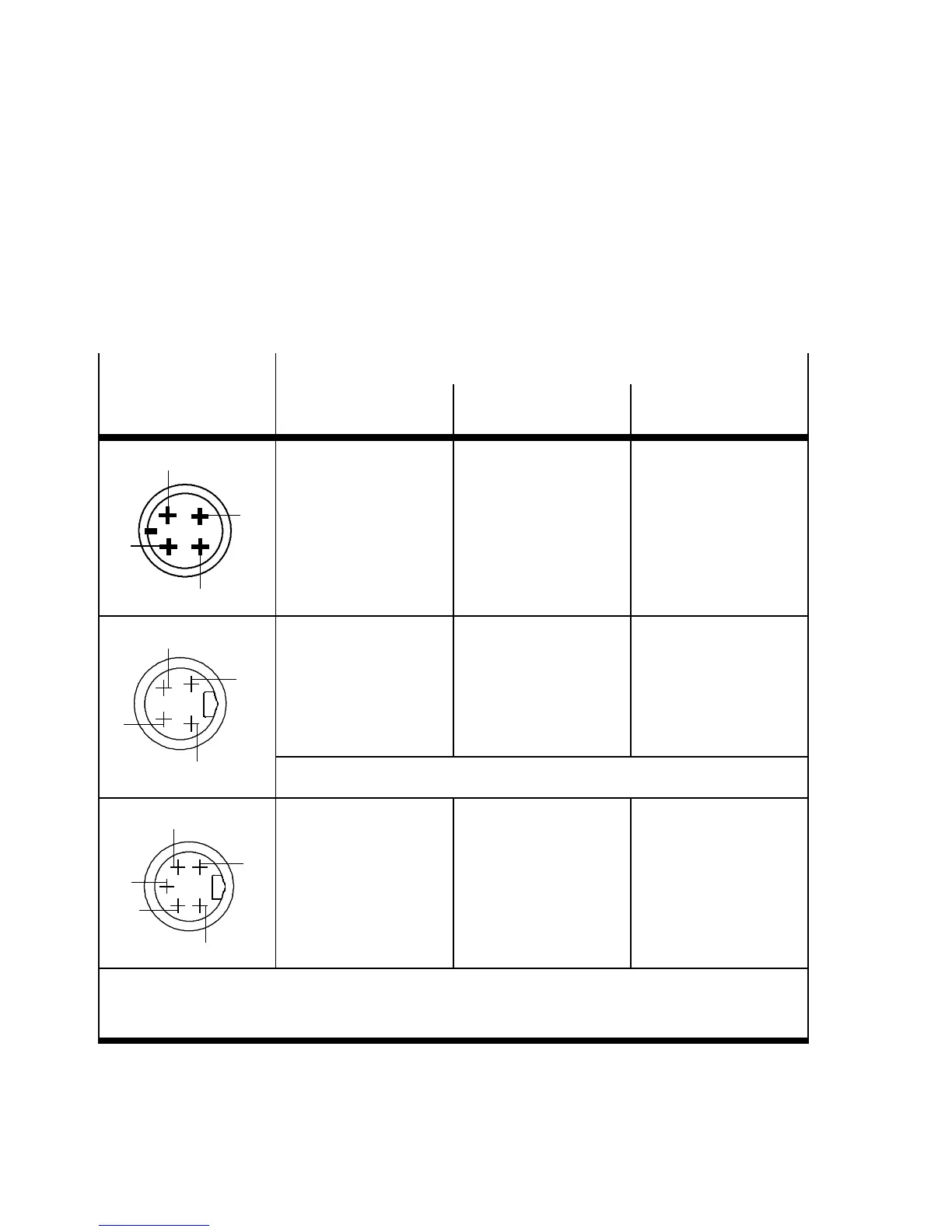

Pin assignment of interlinking block with
system supply type
CPX-GE-EV-S...
additional supply type
CPX-GE-EV-Z...
valve supply
type CPX-GE-EV-V...
M18
2
3
4
1
1: 24 V
EL/SEN
2: 24 V
VAL
/24V
OUT
3: 0 V
EL/SEN
/
0V
VAL
/0V
OUT
4: Earth connection
1: Free ( not connected)
2: 24 V
OUT
3: 0 V
OUT
4: Earth connection
1: Free ( not c onnected)
2: 24 V
VAL
3: 0 V
VAL
4: Earth connection
7/8”-4POL
D
C
B
A
A: 24 V
EL/SEN
B: 24 V
VAL
/24V
OUT
C: Earth connection
D:0 V
EL/SEN
/
0V
VAL
/0V
OUT
(leading)
A: Free (not co nnected)
B: 24 V
OUT
C: Earth connection
D:0 V
OUT
(leading)
A: Free ( not connected)
B: 24 V
VAL
C: Earth connection
D:0 V
VAL
(leading)
Pin designation: Pay attention to the specifications on the plug.
7/8”-5POL
1
2
3
4
5
1: 0 V
VAL
/0V
OUT
2: 0 V
EL/SEN
3: Ear th connection
(leading)
4: 24 V
EL/SEN
5: 24 V
VAL
/24V
OUT
1: 0 V
OUT
2: Free ( not connected)
3: Ear th connection
(leading)
4: Free (not connected)
5: 24 V
OUT
–
V
EL/SEN
: Operating voltage electronics/sensors
V
OUT
: Load voltage outputs
V
VAL
: Load voltage valves
Tab. 1/6: Pin assignment for system supply, additional supply and valve supply
