3. Diagnostics
3-6
Festo P.BE-CPX-FB32-EN en 1111a

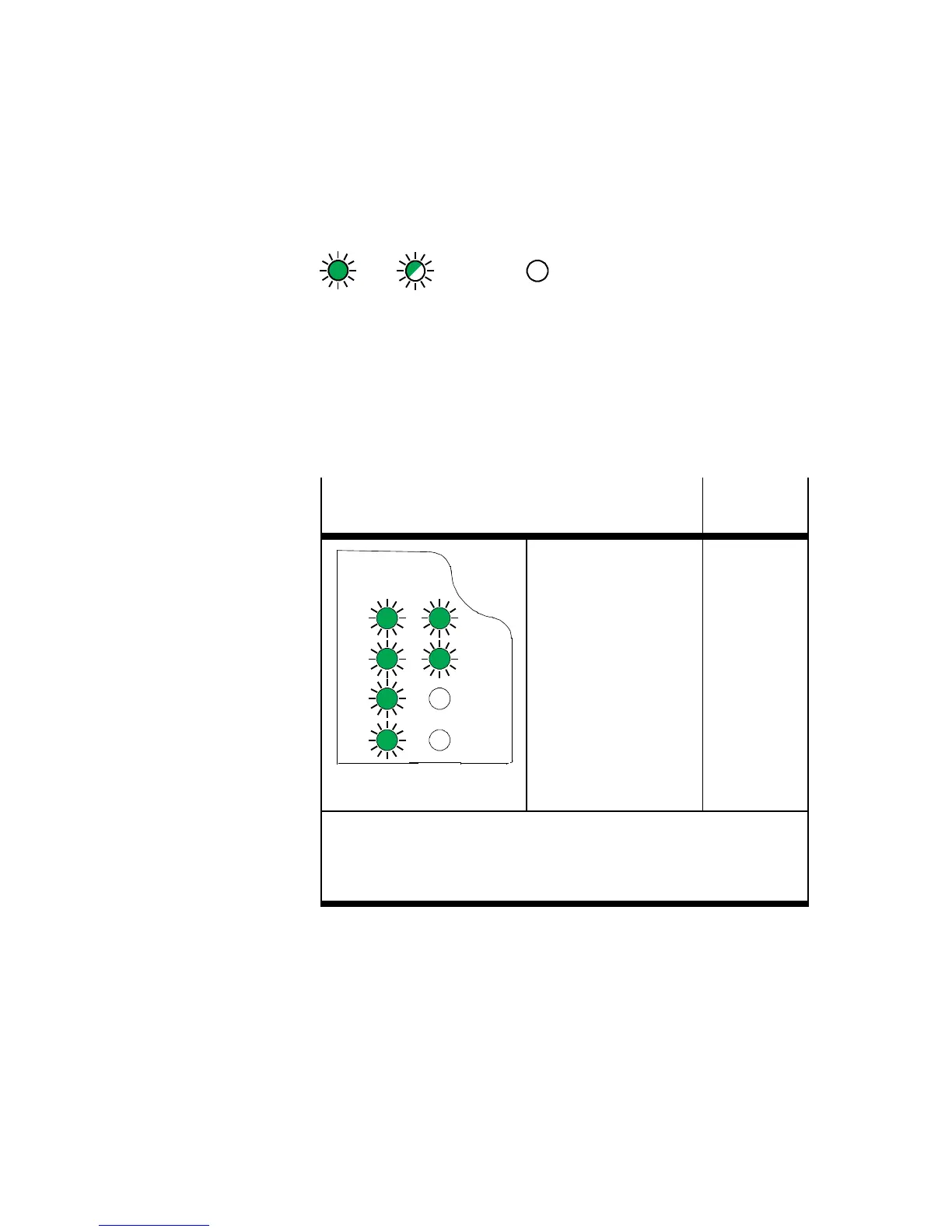

The LEDs are shown in their various states as follows:
lit; flashing; off;
Normal operating status
In normal operating status the following LEDs light up green.
The SF L ED does not light up. The M-LED lights up only with
the setting “System start with stored parameterisation and
stored CPX expansion” (see function number 4402).
LED display
Operating
status
PS
PL
SF
MS
NS
IO
M
TP
The following LEDs
light green:
–PS
–PL
–MS
–NS
–IO
1)
–TP
2)
The SF LED does not
light up.
–SF
M LED see function
number 4402
Standard
1)
Lights up only when inputs/outputs are controlled via
EtherNet/IP.
2)
Steady light: R eady for data transmission
Flashing: Data transmission ongoing
Tab. 3/2: Normal operating status
