Festo CPX-FB36 - CPX-Specific LED Displays

4. Diagnostics
4-6
Festo CPX-FB36-EN en 1611a English

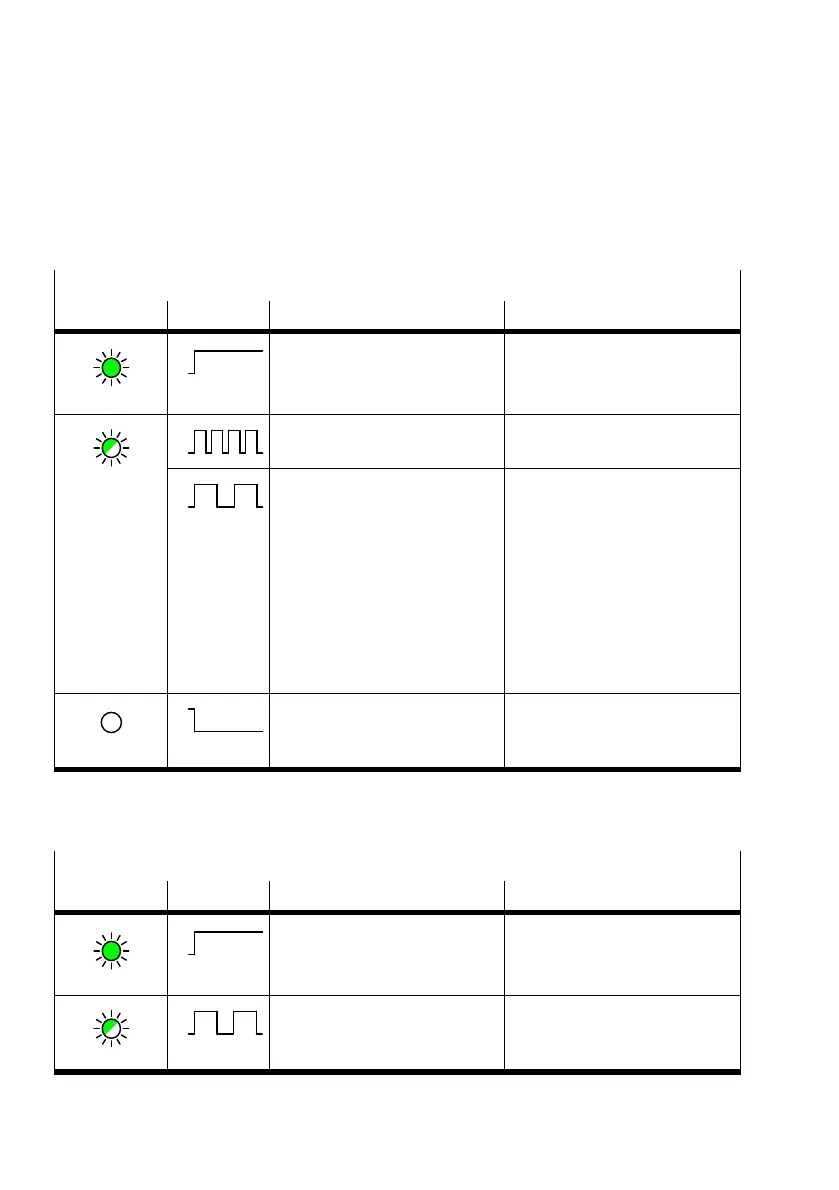

4.2.1 CPX-specific LED displays
PS (Power System) – operating voltage supply
LED (green) Sequence Significance Error handling
lights up
ON
Off
No error. Operating voltage
applied.
–
flashes
ON
OFF
Operating voltage outside the
tolerance range.
 Eliminate undervoltage.
ON
OFF
Internal fuse has responded. 1. Eliminate short circuit/over
load.
2. Depending on the paramet
erisation:
 The power supply will be
switched on again automat
ically after the short circuit
has been eliminated (fact
ory setting).
 Switch the power supply off
and then on again.
Off
ON
OFF
Operating voltage not present.  Check connection of the oper
ating voltage.
Tab. 4/3: LED indicator PS (power supply)
PL (power load) – load voltage supply
LED (green) Sequence Significance Error handling
lights up
ON
Off
No error. Load voltage present. –
flashes
ON
OFF
Load voltage outside the tole
rance range.
 Eliminate undervoltage.
Tab. 4/4: LED indicator PL (load voltage supply)
