4. Diagnostics
4-9
Festo CPX-FB36-EN en 1611a English
4.2.2 Network-specific LED indicators
MS (Module Status) – module status
1)
LED
(green, red)
Sequence Significance Error handling
EtherNet/IP network protocol
lights up green
ON
OFF
Normal operating status –
flashes green
ON
OFF
Configuration of the CPX termi
nal not complete or not correct.
 Complete or correct configur
ation of the CPX terminal.
lights up red
ON
OFF
Error cannot be rectified  Contact Festo Service
(è www.festo.com).
flashes red
ON
OFF
Error can be rectified  Check configuration of the
CPX terminal.
flashes
red/green
ON
OFF
The CPX terminal is in self-test. –
Off
ON
OFF
No logic power supply of the net
work interface.
 Check logic supply.
Modbus® TCP network protocol
lights up green
ON
OFF
Ready for Modbus connections –
Off
ON
OFF
Not ready for Modbus® connec
tions
–
1) The behaviour of the LED indicator is dependent on the network protocol used.

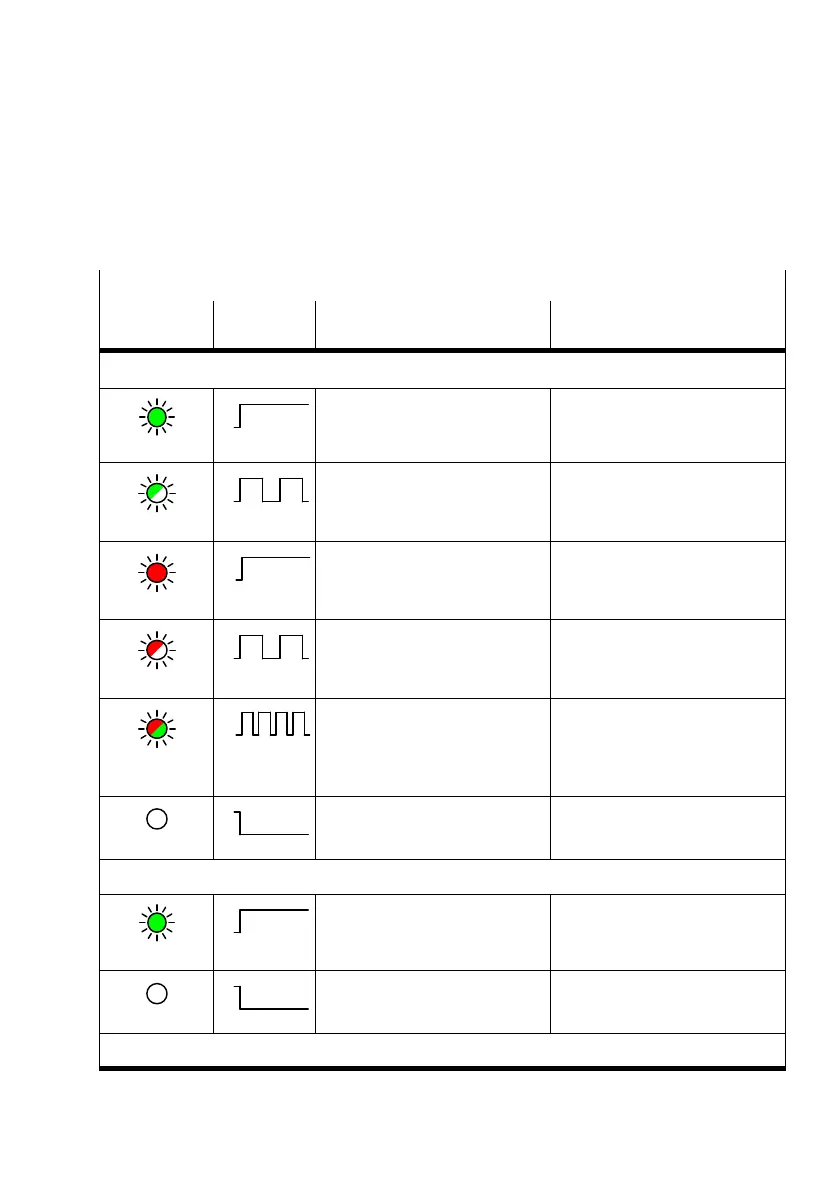

Tab. 4/7: LED indicator MS (Module Status)
