Trouble Shooting
168 © Festo Didactic GmbH & Co. • MPS

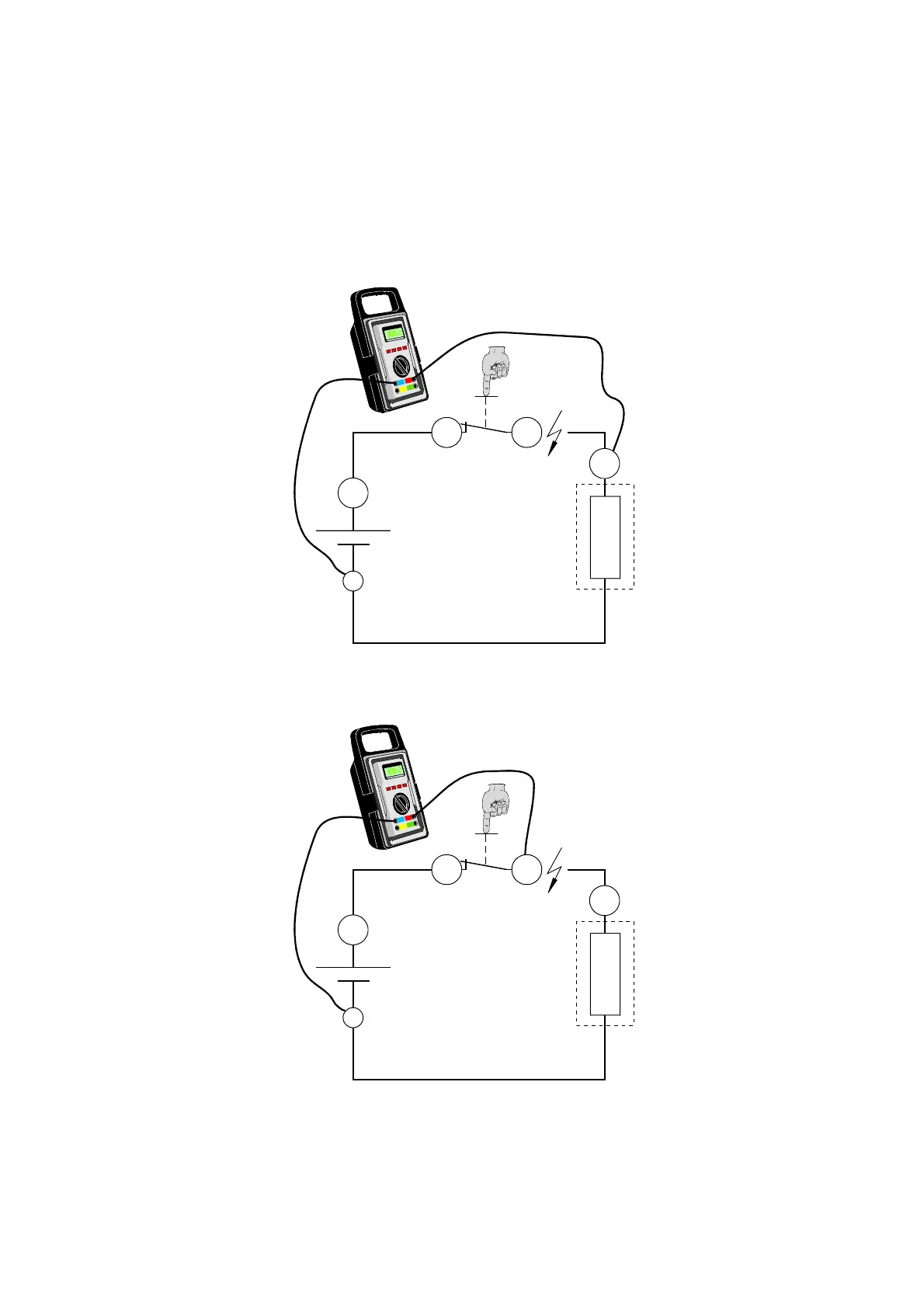

Voltage test procedure 1. step:
0V
0V
24V
0V-clamp
PLC-board
PLC-
input
R
0V
XK1
24V
XMG2
21
XMG2
13
A2DI1
2
Voltage test procedure 2. step:
0V
0V
24V
0V-clamp
PLC-board
PLC-
input
R
12V
XK1
24V
XMG2
21
XMG2
13
A2DI1
2
Result: disconnection must be located between clamp XMG2 and A2DI1-2= broken
wiring
