Programming
© Festo Didactic GmbH & Co. • MPS 71
Please edit the PLC-program concerning the following description:
as long as a Start-button is pressed AND a Auto/Manu-switch is NOT activated, the
piston rod of the cylinder with single solenoid shall move.
Information
Use FC10 to edit the program. Open a new project and name it P2_05. Please copy
the hardwareconfiguration from the project before. Please use symbol adresses. The
programming language for FC10 should be FBD, for OB1 STL. The FC10 shall start

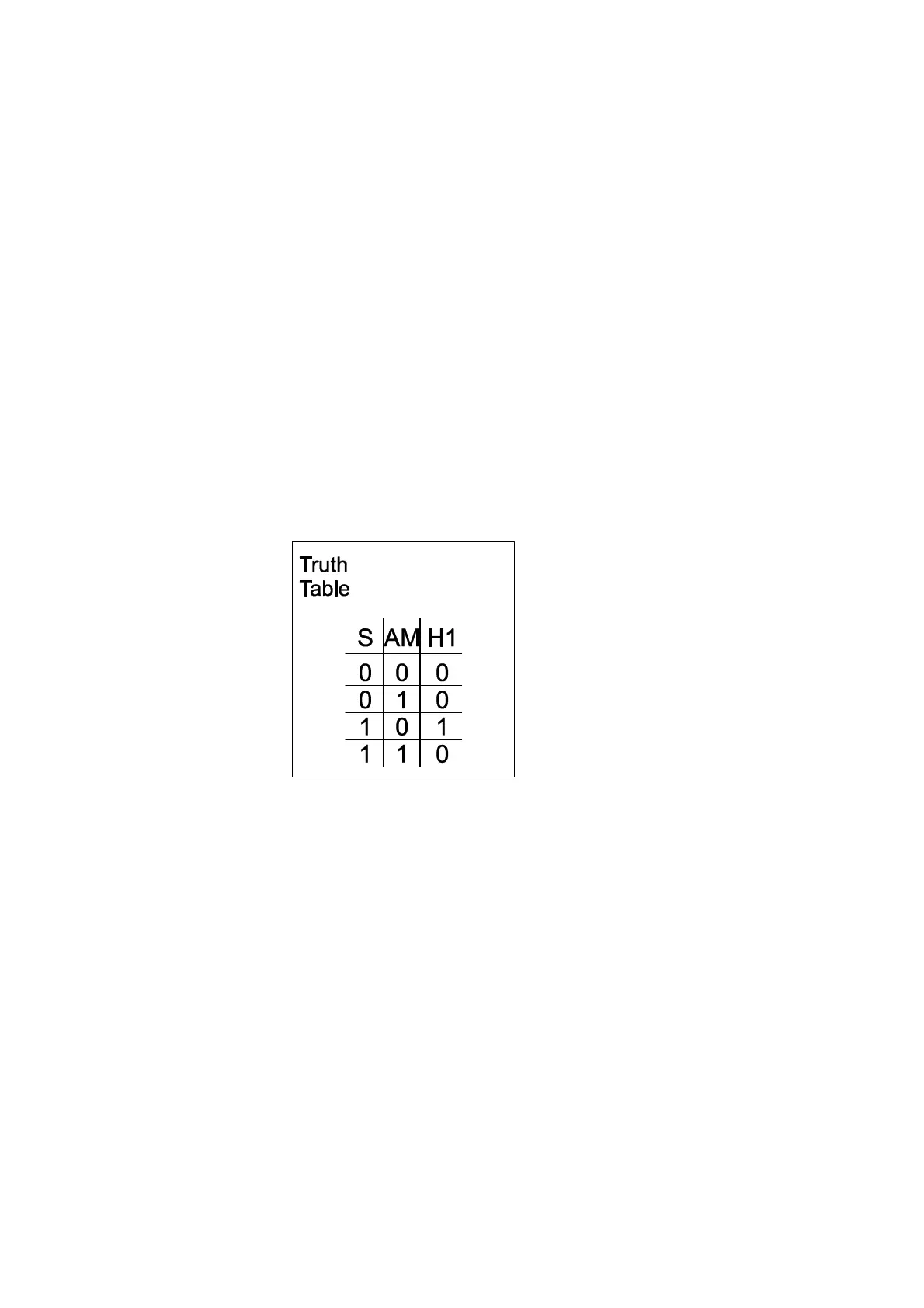

unconditional. Work out the Truth Table together with the instructor first.
Instructor: Please work out the Truth table together with the participants. Show
how to negate an input in the program with FBD. Explain that within the program
they shall use the cylinder with single solenoid valve not the light H1.
Planning
Please plan your project step by step first within the group.
The time to finish this project should be around 0,5 hour.
2.5 Programming –
Basics in Digital
Technology – AND
NOT
