Programming
74 © Festo Didactic GmbH & Co. • MPS

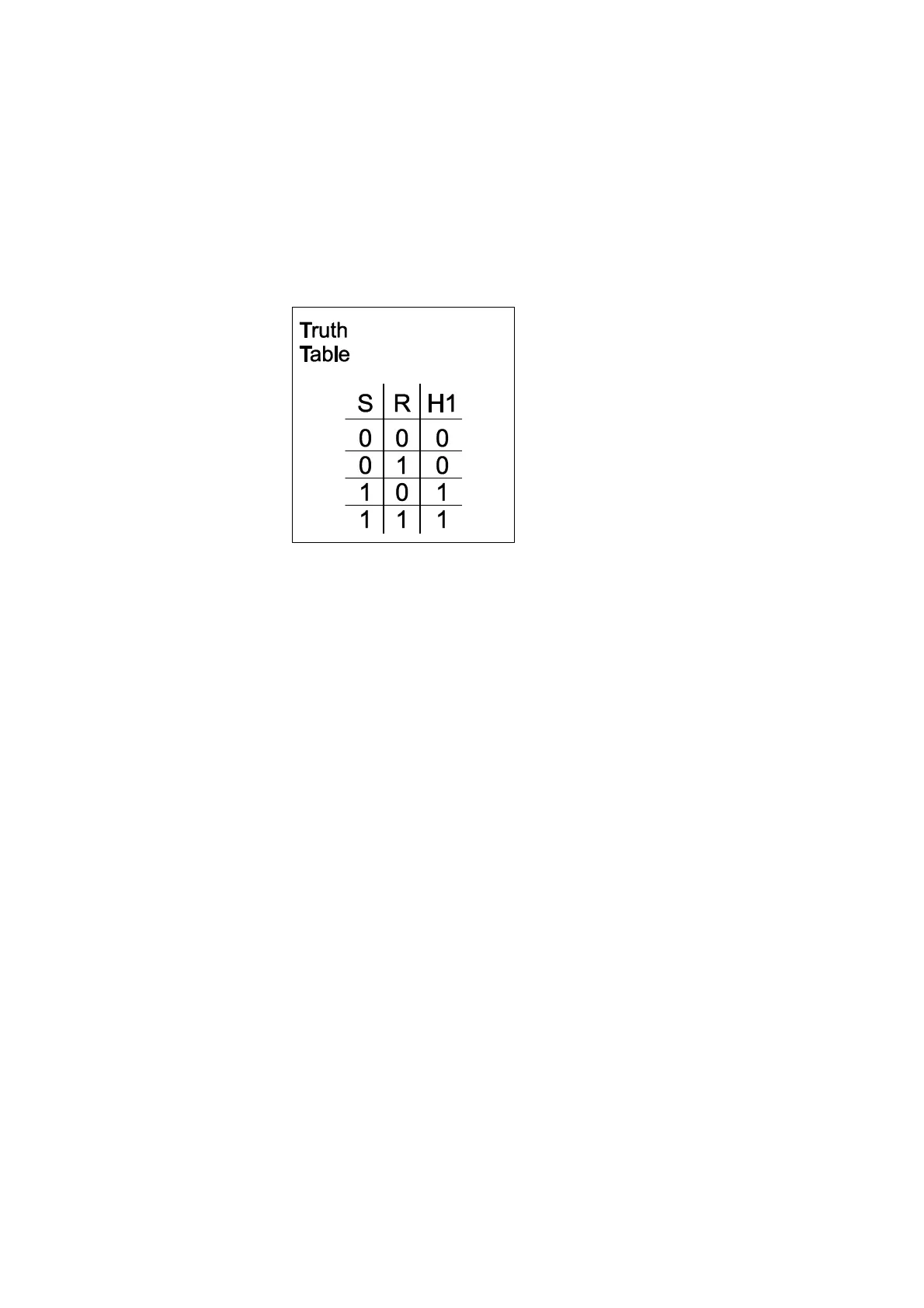

Please edit the PLC-program concerning the following Truth table. Reduce the logic
as much as possible. Use the Start-button (S) and the Reset-button (R) and the
cylinder with single solenoid valve (H1).
Information
Use FC1 to edit the program. Open a new project and name it P2_06. Please open
the Project 2.4 (P2_04) again and copy all parts you need. Please use symbol
adresses. The programming language for FC1 and for OB1 should be STL. The FC1
shall start unconditional.
Instructor: Please tell the participants, that only one logic module is needed for
this project.
Planning
Please plan your project step by step first within the group.
The time to finish this project should be around 0,5 hour.
2.6 Programming –
Basics in Digital
Technology –
