B. Supplementary summary of components
B−3
Festo P.BE−VTSA−44−EN en 0509NH

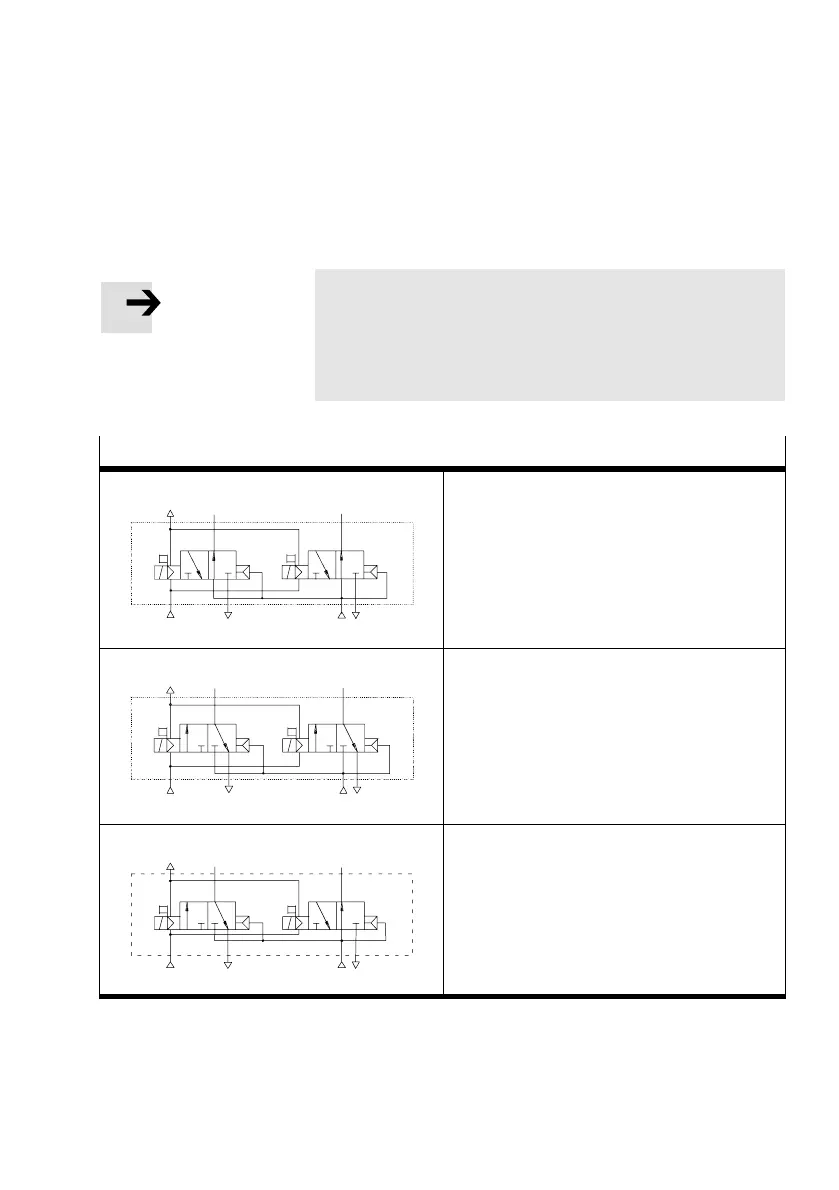

B.1 Overview of valve location components
Please note
The numbers on the following switching symbols are the
designations of the connections, coils and manual over
rides; e.g. designation 14 stands for manual override 14 or
coil 14. They are not logic designations.
2x3/2−way valves
82/84 (12)
14
53
1
42
12
14
Identifier T32U−A; Ident. code N
Function:
Two single−solenoid 2x3/2−way valves,
basic position open.
14
5
3
1
42
12
14
82/84 (12)
Identifier T32C−A; Ident. code K
Function:
Two single−solenoid 2x3/2−way valves,
basic position closed
14 5
3
1
42
12
14
82/84 (12)
Identifier T32H−A; Ident. code H
Function:
On control side 14 a single−solenoid
2x3/2−way valve (basic position closed) and
on control side 12 a single−solenoid
2x3/2−way valve (basic position open).
Tab.B/1: 2x3/2−way valves
