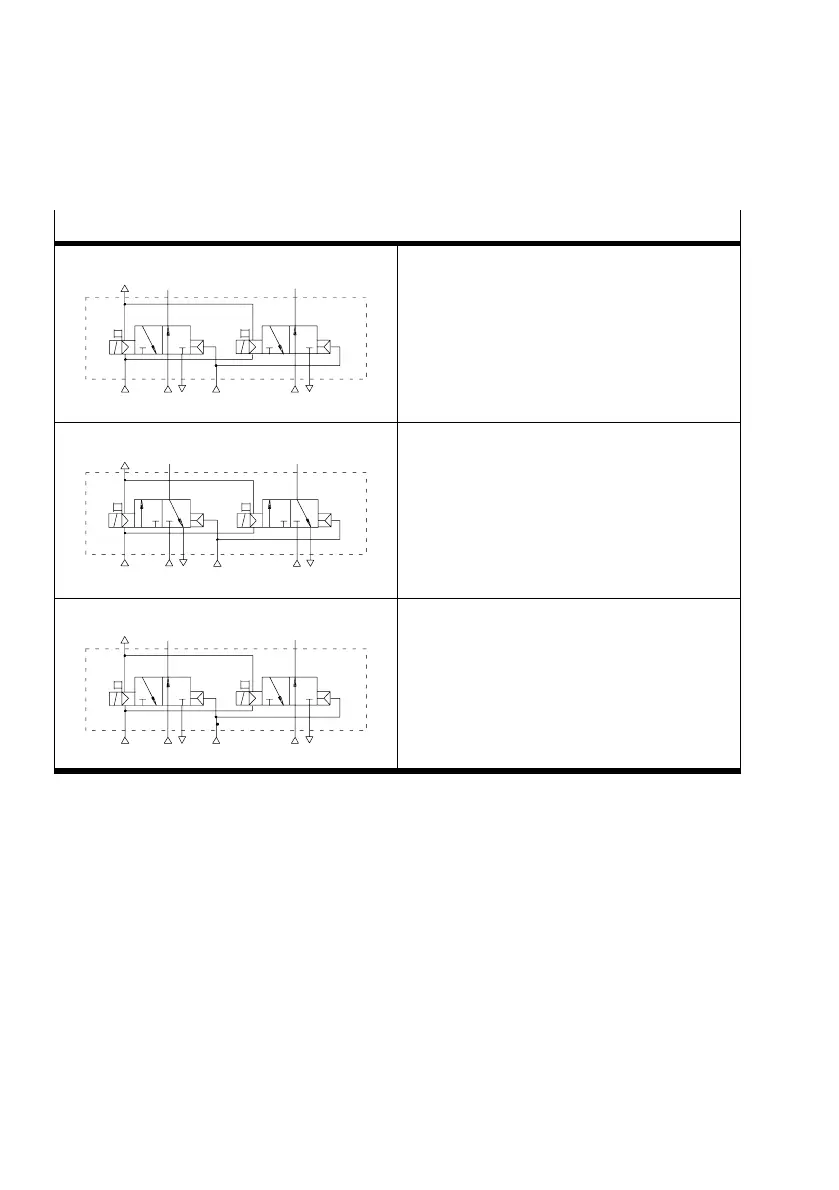

Reversible 2x3/2−way valves
14
5
3
1
42
12
14
1
12
Identifier T32F−A; Ident. code P
Function:
 Reversible operation
Two single−solenoid 2x3/2−way valves,
Basic position open
14
5
3
1
42
12
14
1
12
Identifier T32N−A; Ident. code Q
Function:
 Reversible operation
Two single−solenoid 2x3/2−way valves,
basic position closed
14 5
3
1
42
12
14
112
Identifier T32W−A; Ident. code R
Function:
 Reversible operation
On control side 14 a single−solenoid
2x3/2−way valve (basic position closed) and
on control side 12 a single−solenoid
2x3/2−way valve (basic position open).
Tab.B/2: Reversible 2x3/2−way valves
