B. Supplementary summary of components
B−5
Festo P.BE−VTSA−44−EN en 0509NH

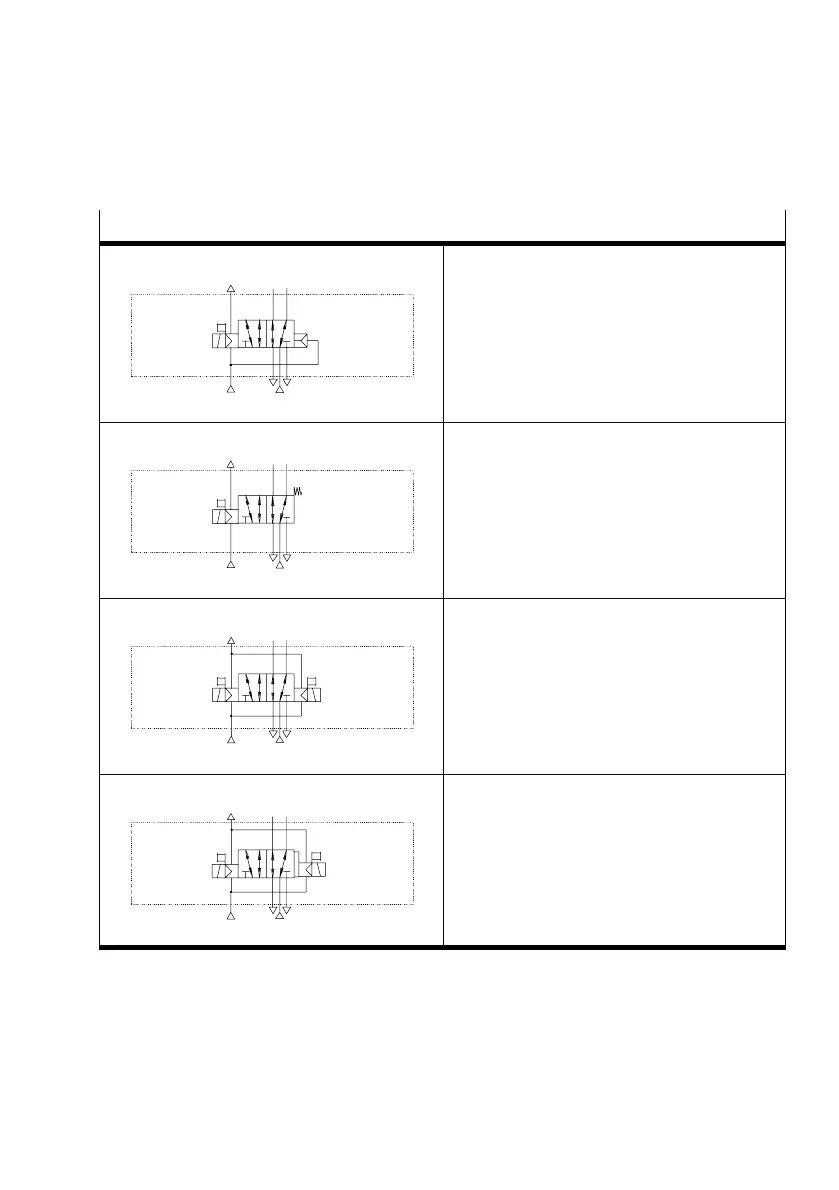

5/2−way valves
14
53
1
4
2
14
82/84 (12)
Identifier M52−A; Ident. code M
Function:
 One single−solenoid 5/2−way valve
 Pneumatic spring reset
Note
The number of outputs, which are occupied by
this valve, depends on the type of manifold block
(see chapter 3.4).
14
53
1
42
14
82/84 (12)
Identifier M52−M; Ident. code O
Function:
 One single−solenoid 5/2−way valve
 Spring reset
Note
The number of outputs, which are occupied by
this valve, depends on the type of manifold block
(see chapter 3.4).
14
53
1
42
12
14
82/84 (12)
Identifier B52; Ident. code J
Function:
 One 5/2−way double−solenoid valve
14
53
1
42
12
14
82/84 (12)
Identifier D52; Ident. code D
Function:
 One 5/2−way valve, double solenoid,
dominating
Tab.B/3: 5/2−way valves
